SF-1W DP40 Composite Bushings INW-10W without Pb Steel Bronze Powder PTFE
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN 1494 | Material: | Steel+Bronze +PTFE |
| Type: | With Split | Technical: | Dry Bushing |
| Highlight: | composite bearing,compound bearings |
||

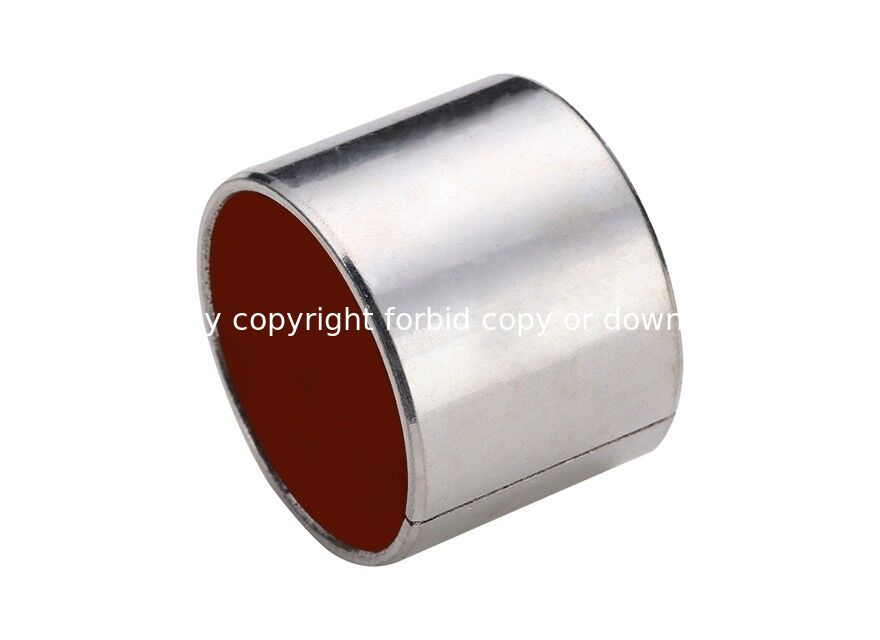

SF-1W DP40 Composite Bushings INW-10W without Pb Steel Bronze Powder PTFE
INW-10W Dry bushing with Tin outside SF-1W DX DU Bushing without Pb Steel + Bronze Powder + PTFE/Fibre
Key Features
- Suitable for dry running applications
- Low coefficient of friction with reduced wear
- Excellent sliding characteristics
- Transfer film protects mating metal surfaces
- Compatible with rotating and oscillating movements
- High chemical resistance
- Low water absorption and minimal swelling
- Improved friction and superior wear resistance compared to CSB-50 range under lubricated operation
Technical Specifications
| Parameter | Value | Condition |
|---|---|---|
| Max. Static Load | 250 N/mm² | |
| Max. Speed (Dry Running) | 0.08-0.20 m/s | |
| Very Low Speed Load | 140 N/mm² | Hydrodynamic Operation |
| Rotating/Oscillating Load | 60 N/mm² | |
| Friction Coefficient (Dry) | 2 m/s | |
| Hydrodynamic Speed | >2 m/s | |
| Max. PV (Dry Running) | 3.6 N/mm²·m/s | Short-term Operation |
| Max. PV (Dry Running) | 1.8 N/mm²·m/s | Continuous Operation |
| Temperature Range | -195℃ to +280℃ | Hydrodynamic |
| Thermal Conductivity | 42 W/(m·K) | |
| Coefficient of Thermal Expansion | 11×10⁻⁶ K⁻¹ |
Multi-Layer Structure
1. PTFE/Fibre Mixture - Thickness 0.01-0.03mm. This forms the contact surface for the rotating shaft. Minute particles from the PTFE layer combine with sintered bronze material to create a solid lubricant film that coats the shaft.
2. Sintered Bronze Powder - Thickness 0.20-0.35mm. A specialized copper powder composition thermally fused to the steel backing. This layer anchors the PTFE layer and conducts thermal buildup away from bearing surfaces.
3. Low-Carbon Steel Backing - Provides the foundation for the bushings, delivering exceptional stability, load carrying capacity, and superior heat dissipation characteristics.
Typical Applications
- Automotive: Tractors, combines, crop sprayers, earth-movers, graders, construction equipment, power steering cylinders, steering gear thrust washers, disc brakes, calipers, pistons, shock absorbers, governor linkage, windshield wiper motors, tilt gear assemblies
- Business Machines: Photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers, peripheral equipment, automatic printing devices, mail processing machinery
- Hydraulics and Valves: Gear pumps, rotary pumps, water pumps, axial piston pumps, ball valves, butterfly valves, poppet steam valves, valve trunnions
- Home Appliances: Tape recorders, refrigerators, air conditioners, vacuum cleaners, polishers, sewing machines, ovens, dishwashers, washing machines
- Additional Applications: Materials handling equipment, marine engines, packaging machinery, textile equipment, industrial tools
