SPW And Spwn Washer Solid Lubricant Bearings / Sobw And Sobwn Washer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Low Resistance,Long Operating Life,Maintenance,High Precision | Material: | Bronze |
|---|---|---|---|
| Type: | Sleeve | Size: | Standard Size,Customizable |
| Product Name: | Brass Bush,Sleeve Bearing | Lubricating: | Oilless |
| Highlight: | Sleeve Type Solid Lube Bearings,Low Resistance Solid Oil Bearings,Oilless Solid Lubricant Bearings |
||

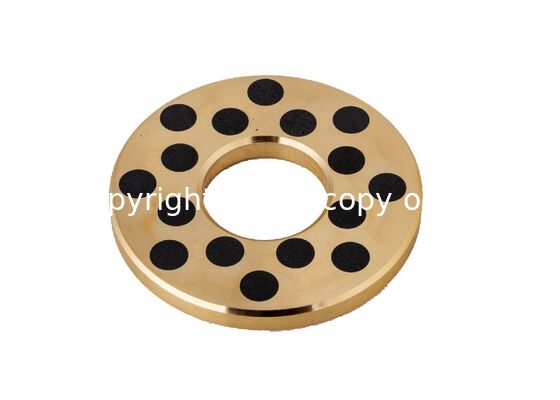

SPW & SPWN Washer Solid Lubricant Bearings / SOBW & SOBWN Washer
High-performance solid lubricating bearings manufactured from bronze alloy SO#50SP2 with graphite impregnation. These maintenance-free bearings offer exceptional durability and reliability in demanding industrial applications.
Product Overview
Material: Bronze Alloy SO#50SP2 + Graphite
Hardness: >250HB
Characteristics: Self-lubricating & Maintenance-free
Hardness: >250HB
Characteristics: Self-lubricating & Maintenance-free
Key Features
- High load capacity for demanding applications
- Excellent wear and abrasion resistance
- Moderate corrosion resistance
- Compatible with hardened mating materials
- Ideal for toggle mechanism bushings in injection molding machines
Applications
These solid lubricant bearings are widely used in continuous casting rolling machines, mining machinery, shipping machinery, turbines, injection machinery, automotive molds, and various industrial equipment.
Available Types
Cylindrical bush, flanged bush, washer, strip, and custom configurations
Standard Part Numbers
SPW-0603, SPW-0803, SPW-1003, SPW-1203, SPW-1203N, SPW-1303, SPW-1403, SPW-1503, SPW-1603, SPW-1603N, SPW-1803, SPW-2005, SPW-2505, SPW-3005, SPW-3505, SPW-4007, SPW-4507, SPW-5008, SPW-5508, SPW-6008, SPW-6508, SPW-7010, SPW-7510, SPW-8010, SPW-9018, SPW-10010, SPW-12010, SOBW-10, SOBW-12, SOBW-13, SOBW-14, SOBW-15, SOBW-16, SOBW-18, SOBW-20, SOBW-25, SOBW-30, SOBW-35, SOBW-40, SOBW-45, SOBW-45A, SOBW-50, SOBW-55, SOBW-60, SOBW-65, SOBW-70, SOBW-75, SOBW-80, SOBW-90, SOBW-100, SOBW-120, SOBWN-10, SOBWN-12, SOBWN-16, SOBWN-20, SOBWN-25, SOBWN-30
Technical Information
Material Composition
The solid casting bronze material is engineered for highly demanding applications in challenging environments. Our standard assortment includes plain sleeve bushings, flanged bushings, and sliding plates conforming to ISO 4379 and DIN1850 standards.
The solid bronze body features drilled holes filled with solid graphite lubricant, enabling reliable operation in oilless environments. Alternatively, machined oil grooves and holes can be added for enhanced lubrication when using grease.
Performance Advantages
- Insensitive to dirty and contaminated environments
- Resistant to shock loads and vibrations at slow speeds
- Compatible with poor shaft surface finishes
- Good resistance to corrosive conditions
Material Specifications
Solid bronze bushings and plates are manufactured entirely from tin bronze (CuSn10P), offering excellent machinability. All surfaces are precision machined for optimal performance. Solid iron alternatives are available for cost-sensitive applications with lower performance requirements.
Industry Applications
- Construction machinery
- Transport equipment
- Pulp and papermaking machinery
- Off-shore equipment
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Base Bronze 500SP: CuZn25Al6Fe3Mn3 |
| Lubricant | Solid Graphite (SL2) |
| Density | 8.2 g/cm³ |
| Tensile Strength | ≥755 N/mm² |
| Anti-compact Tenacity | ≥400-500 KJ/m³ |
| Hardness | ≥200 HB |
| Max Load Pressure | 100 N/mm² (120 N/mm² for 500SP120) |
| Speed Limit | 0.5 m/s |
| PV Value Limit | 1.65 N/mm²·m/s |
| Friction Coefficient (Oil) | 0.03 |
| Friction Coefficient (Dry) | 0.16 |
| Working Temperature | -50 to +300°C |
