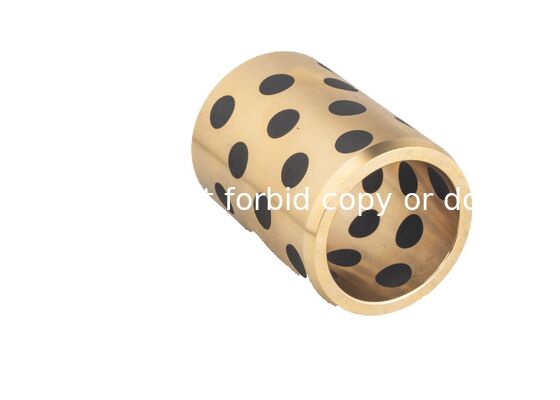

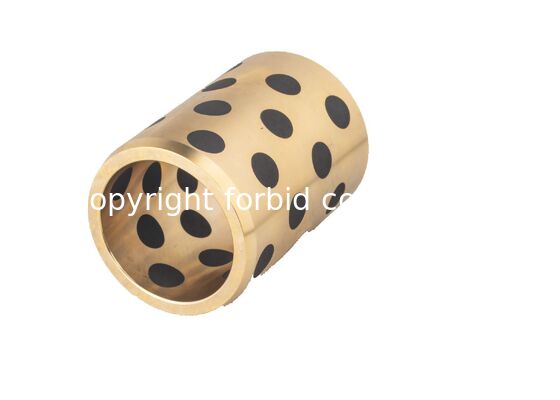

Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance

Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance
Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance

Large Image :  Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: INWAY
Certification: ISO9001
Model Number: SOB
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 5 work days or based on quantity
Payment Terms: L/C, T/T
Supply Ability: 100 tons/month
Contact Now
Detailed Product Description
Features: Low Resistance,Long Operating Life,Maintenance,High Precision Material: Bronze
Type: Sleeve Size: Standard Size,Customizable
Product Name: Brass Bush,Sleeve Bearing Lubricating: Oilless
Highlight:

Straight Type solid oil bearings

,

Low Resistance Solid Lubricant Bearings

,

Straight Type Solid Lube Bearings

Guide Bushes SOB Solid Lube Bearings
Universal straight type low resistance guide bushes designed for demanding industrial applications.
Product Overview
SOB bronze straight type guide bush sliding bearings provide reliable performance in challenging environments with solid lubrication capabilities.
Material Properties
  • Solid casting bronze construction ideal for demanding applications in tough environments
  • Standard assortment of plain sleeve bushings, flanged bushings and sliding plates per ISO 4379 and DIN1850
  • Solid bronze body can be drilled and filled with graphite lubricant for oilless operation
  • Machinable oil grooves and holes for enhanced grease lubrication
    • Key Features & Advantages
  • Insensitive to dirty environments
  • Resistant to shock loads and vibrations at slow speeds
  • Compatible with poor shaft surface finish
  • Excellent resistance to corrosive conditions
    • Material Composition
    Solid bronze bushings and plates are manufactured entirely from tin bronze (CuSn10P) with excellent machinability. All surfaces are precision machined. Solid iron bushings and plates offer cost-effective alternatives for less demanding applications.
    Typical Applications
  • Construction machinery
  • Transport equipment
  • Pulp and papermaking machinery
  • Off-shore equipment
    • Technical Specifications
    Parameter Value
    Material Base Bronze / 500SP: CuZn25Al6Fe3Mn3
    Lubricant SL2 Solid Graphite
    Density 8.2 g/cm³
    Tensile Strength ≥755 N/mm²
    Anti-compact Tenacity ≥400-500 KJ/m³
    Hardness ≥200 HB
    Max Load Pressure 100 N/mm² / 120 N/mm² (500SP120)
    Speed Limit 0.5 m/s
    PV Value Limit 1.65 N/mm²·m/s
    Friction Coefficient (Oil) 0.03
    Friction Coefficient (Dry) 0.16
    Working Temperature -50 to +300°C
    Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance 0
