Harmless Self Lubricating Bearings Copper Nickel Tin Alloys
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | CuNi15Sn8 | Type: | Flange Bushes |
|---|---|---|---|
| Applocation: | Oil Develop Drills | Size: | Customized Or According To Drawing |
| Shape: | Rod,sheet,wire | Name: | Self Lubricating Sleeve |
| Highlight: | copper nickel tin self lubricating bearings,harmless self lubricating bearings,copper nickel tin self lubricating sleeve |
||
Harmless Self Lubricating Bearings Copper Nickel Tin Alloys

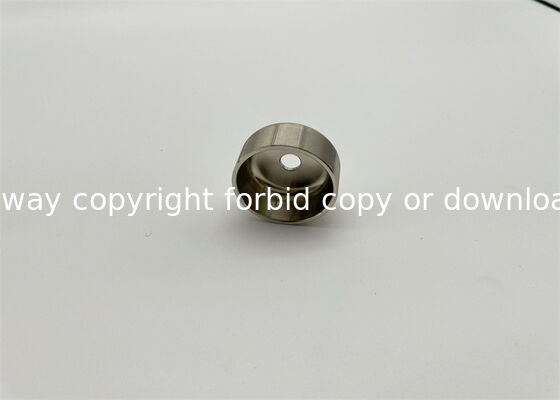

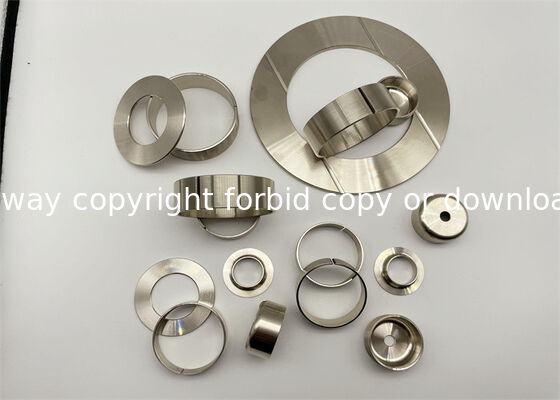

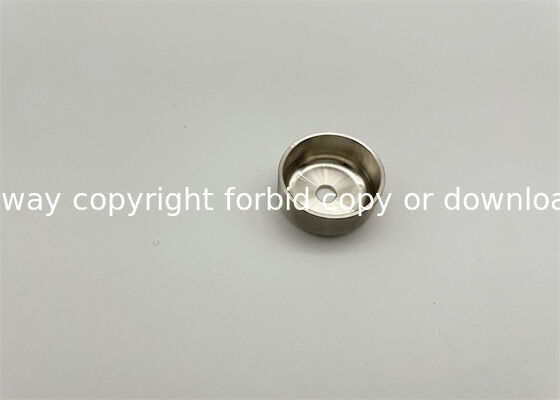

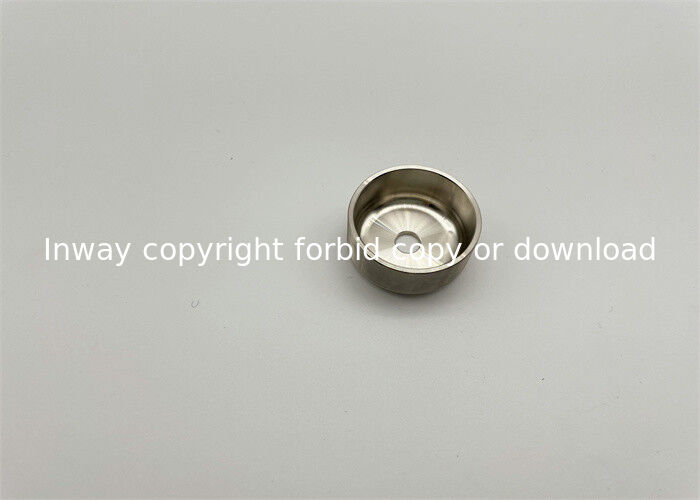

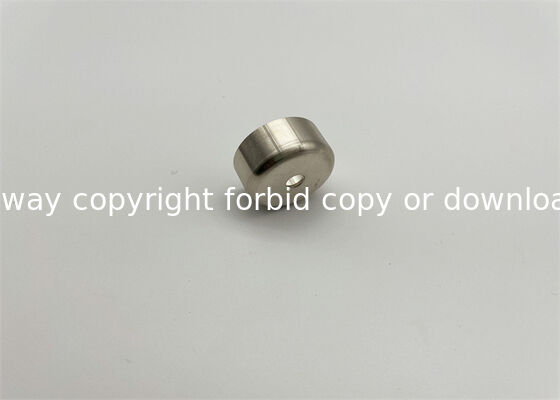

Spinodal Cup made of copper nickel tin alloys UNS C72900, equivalent to Toughmet. Inway Cu15Ni8Sn is a direct equivalent to Toughmet 3 and provides a proven track record solution. Extensive testing ensures that Hardiall® fully complies with relevant specifications, helping high-end industries mitigate supply chain risks.
Inway CuNi9Sn6 has been developed to master technical, economic and ecological constraints for heavily loaded bearings in construction mining, automotive and industrial applications. It serves as an ideal substitute for steels, casted leaded bronze or manganese bronzes, as well as casted spinodal copper nickel tin alloys like C96900 CX105 and C96970 CX90, ensuring adequate fatigue strength.
Key Features and Benefits
- Achieves combination of high rigidity and high strength
- Withstands dynamic impact loads effectively
- Meets stringent requirements for static structural load and pressure
- Superior thermal stress relaxation resistance compared to beryllium copper alloy
- Excellent anti-wear bearing performance with natural self-lubrication
- Prevents friction pair seizure - essential for aircraft landing gear bearings
- Preferred material for oil well connecting rods and high-temperature alternating load applications
- Turning performance equivalent to easy turning brass alloy
- Easy to process into complex components
- Suitable for acidic environments and salt water with high temperature corrosion resistance
- Good welding performance
- Electrical stability superior to beryllium copper alloy
- Non-magnetic - suitable for high-temperature connectors and RF connectors
- Non-toxic, harmless, and environmentally friendly
Chemical Composition of C72900
| Model | Ni | Sn | Other Alloy Elements | Impurities | Cu |
|---|---|---|---|---|---|
| C72900 | 14.5-15.5 | 7.5-8.8 | 0.2-0.6 | ≤0.15 | Remnant |
Physical Properties of C72900
| Elastic Modulus | Poisson's Ratio | Electrical Conductivity | Thermal Conductivity | Thermal Expansion Coefficient | Density | Permeability |
|---|---|---|---|---|---|---|
| 21×10^6 psi 144 kN/mm² |
0.33 | ＜7% IACS ＜4 MS/m |
22 Btu/ft/hr/°F 38 W/M/℃ |
9.1×10^-6 in/in/°F 16.4×10^-6 m/m/℃ |
0.325 lb/in³ 9.00 g/cm³ |
＜1.001 |
Minimum Mechanical Properties of C72900
| State | Diameter | Yield Strength 0.2% | Ultimate Tensile Strength | Elongation | Hardness | Average CVN Impact Toughness |
|---|---|---|---|---|---|---|
| Rod TS 95 | 0.75-3.25 inch 19-82 mm |
95 ksi 655 N/mm² |
106 ksi 730 N/mm² |
18% (4D) | 93 HRB | 30 ft-lbs* 40 J* |
| 3.26-6.00 inch 83-152.4 mm |
95 ksi 655 N/mm² |
105 ksi 725 N/mm² |
18% (4D) | 93 HRB | 30 ft-lbs* 40 J* |
|
| Rod TS 120U | 0.75-1.59 inch 19-40.9 mm |
110 ksi 755 N/mm² |
120 ksi 825 N/mm² |
15% | 24 HRC | 15 ft-lbs 20 J |
| 1.6-3.25 inch 41-82 mm |
110 ksi 755 N/mm² |
120 ksi 825 N/mm² |
15% | 24 HRC | 12 ft-lbs 16 J |
|
| 3.26-6.00 inch 83-152.4 mm |
110 ksi 755 N/mm² |
120 ksi 825 N/mm² |
15% | 22 HRC | 11 ft-lbs** 14 J** |
|
| Rod TS 130 | 0.75-6.00 inch 19-152.4 mm |
130 ksi 895 N/mm² |
140 ksi 965 N/mm² |
10% | 24 HRC | - |
| Rod TS 160U | 0.25 inch ＜6.35 mm |
150 ksi 1035 N/mm² |
160 ksi 1100 N/mm² |
5% | 32 HRC | - |
| 0.26-0.4 inch 6.35-10 mm |
150 ksi 1035 N/mm² |
160 ksi 1100 N/mm² |
7% | 32 HRC | - | |
| 0.41-0.75 inch 10.1-19 mm |
150 ksi 1035 N/mm² |
165 ksi 1140 N/mm² |
7% | 36 HRC | - | |
| 0.76-1.6 inch 19.1-41 mm |
150 ksi 1035 N/mm² |
165 ksi 1140 N/mm² |
5% | 34 HRC | - | |
| 1.61-3.25 inch 41.1-82 mm |
150 ksi 1035 N/mm² |
160 ksi 1100 N/mm² |
3% | 34 HRC | - | |
| 3.26-6.00 inch 83-152.4 mm |
148 ksi 1020 N/mm² |
160 ksi 1100 N/mm² |
3% | 32 HRC | - |
*: Any value is no less than 24 ft-lbs (32J)
**: Any value is no less than 10 ft-lbs (13.5J)
**: Any value is no less than 10 ft-lbs (13.5J)
Standard Tolerance of Rod and Wire of C72900
| State | Type | Diameter | Tolerance of Diameter | Tolerance of Straightness |
|---|---|---|---|---|
| TS 95, TS 120U, TS 130, TS 160U | Rod | 0.75-1.6 inch 19-40.9 mm |
+0.02/+0.08 inch +0.5/+2.0 mm |
length=10ft, deviation＜0.5 inches length=3048mm, deviation＜12mm |
| 1.61-2.75 inch 41-70 mm |
+0.02/+0.10 inch +0.5/+2.5 mm |
length=10ft, deviation＜0.5 inches length=3048mm, deviation＜12mm |
||
| 2.76-3.25 inch 70.1-82 mm |
+0.02/+0.145 inch +0.5/+3.7 mm |
length=10ft, deviation＜0.5 inches length=3048mm, deviation＜12mm |
||
| 3.26-6.00 inch 83-152.4 mm |
+0.02/+0.187 inch +0.5/+4.75 mm |
length=10ft, deviation＜0.5 inches length=3048mm, deviation＜12mm |
||
| TS 160U | Wire | ＜0.4 inch ＜10 mm |
±0.002 inch ±0.05 mm |
- |
Applications of C72900
- Sucker rod coupling, MWD equipment, shaft sleeve and gasket in petroleum industry
- Aircraft landing gear shaft sleeve and bearing
- Pressure vessel seals
- Slide guide
- High temperature resistant and corrosion resistant connectors
