SOLP Self Lubricating Bearings Bronze Type Sliding Plate Thickness 10mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 10mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lubricating bronze bushings,Thickness 10mm Self Lubricating Bearings |
||

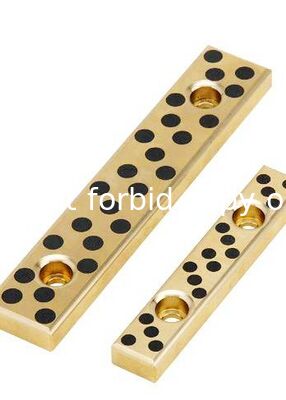

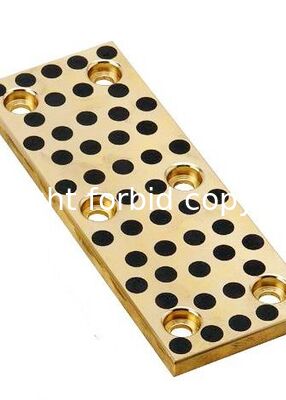

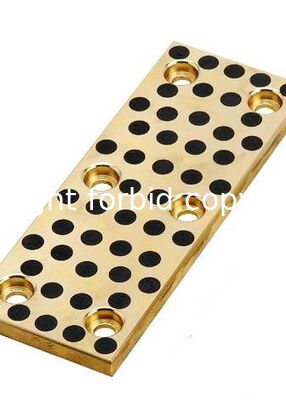

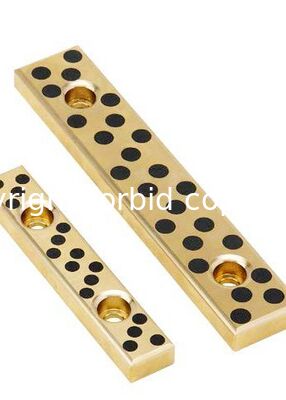

SOLP Self Lubricating Bearings Bronze Type Sliding Plate Thickness 10mm
Bronze type sliding plate SOLP thickness 10mm Self Lubricating Bearings copper alloy graphite plugged
Product Features
- Excellent friction resistance and self-lubrication properties prevent scoring and seizure under harsh conditions
- Superior chemical resistance and corrosion resistance with solid lubricant made of special graphite and PTFE featuring stable molecular structures
- Reduces machinery maintenance costs and eliminates the need for oil lubrication across wide applications
Product Operation
- Superior wear resistance in applications where oil film is seldom present
- Serviceable without the need for lubrication
- Ideal for reciprocating motions, oscillation, and frequent starts and stops
Product Application
- High performance under high-load and low-speed operations
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Serviceable without the need for lubrication
Sliding Characteristics (Lubricating Condition: No Lubrication)
| Mating Material | Hardened Surface with HRC25 or More | Heat Treated Steel or FC Casting Less than HRC25 | Raw Material (SS400) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | |
| FC Type | 5 | 10 | 30 | 5 | 10 | 30 | 5 | 10 | 30 |
| Sintered Type | 50 | 30 | 100 | 25 | 30 | 60 | 25 | 30 | 50 |
| Bronze Type | 100 | 15 | 150 | 50 | 15 | 150 | 25 | 15 | 150 |
