Oil Bronze Bushing SESW SESWT According , Self Lubricating Polymer JIS Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Screw: | 2 Holes Or 4 Holes | Feature: | OEM Production,Long Life,oil Free |
| Lubrication: | Oil Free,Oil-free Self-lubricated | Standard: | JIS |
| Highlight: | self lubricating bronze bushings,self lube bushings,JIS Standard Oil Bronze Bushing |
||

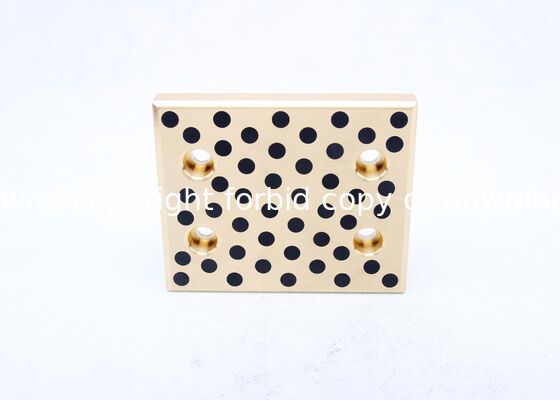

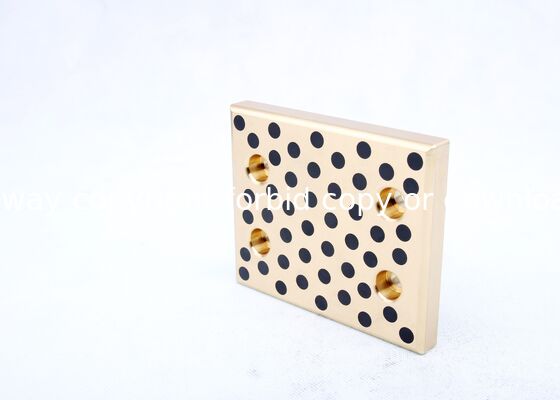

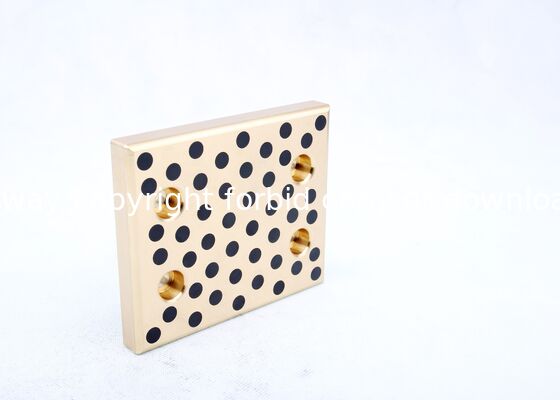

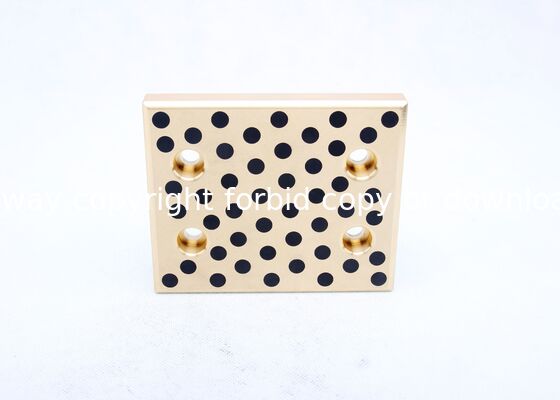

Oil Bronze Bushing SESW/SESWT - Self-Lubricating Polymer JIS Standard
High-performance self-lubricating bronze bushings designed to JIS standards, featuring embedded solid lubricants for maintenance-free operation in demanding industrial applications.
Product Features
- Operate completely without lubrication systems, eliminating oil pollution and reducing assembly time
- Eliminate oil lubrication equipment while offering custom solid lubricant-inlaid designs for specialized applications
- Significantly reduce machinery maintenance costs and lubrication requirements across various applications
Product Operation
- Serviceable without lubrication requirements
- Apply minimal grease for initial lubrication during die spotting
- Available in various standard sizes for immediate application
Product Application
- Delivers exceptional performance under high-load, low-speed operating conditions
- Self-lubricating bearings with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Maintenance-free operation without lubrication needs
Wear Plate Specifications
| Base Metal | Material | Thickness | Code No. | Features |
|---|---|---|---|---|
| FC250 | Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed |
| Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed | |
| SS400 | Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With sintered layer using copper based powder and graphite, occurrence of seizure is very limited | |
| S45C | Graphite | 10 | TWX | Excellent sliding performance |
| Graphite | 10 | TWXT | Excellent sliding performance | |
| Copper alloy | Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops |
| Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWP | Excellent sliding performance at high load and low speed | |
| Graphite | 10 | TWPT | Excellent sliding performance at high load and low speed | |
| Graphite | 5 | UWP | Excellent sliding performance at high load and low speed | |
| Steel (S45C) | Graphite | 20 | FRP | Surface hardness HRC40 or more, excellent in wear resistance |
| Steel (SKS3) | Graphite | 20 | TSP | Surface hardness HRC58 or more, greatly excellent in wear resistance |
