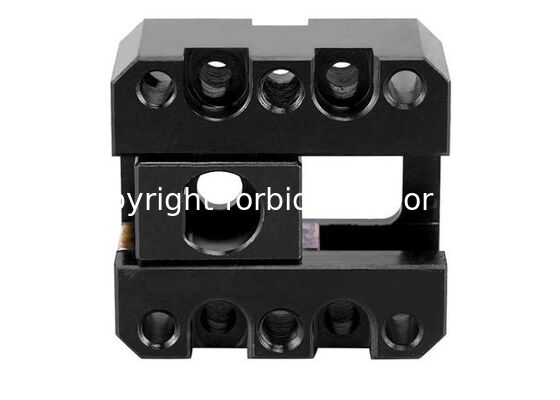

Punch SCY Injection Molding Tool Oil Free Slide Units ISO9001 Certification
Product Overview

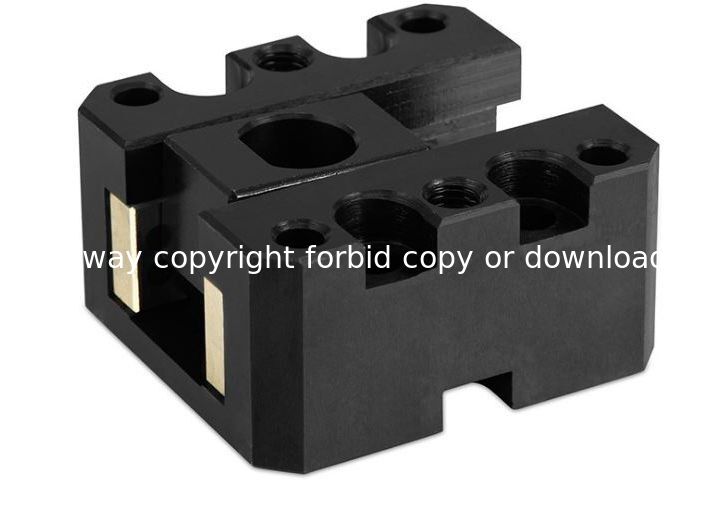

Punch Standard Oil-Free Slide Units For Loose Core - Standard/Fixed Type, designed for precision injection molding applications with ISO9001 certification.
Key Features
- One side features a 0.5mm clearance for precise adjustment - remove stopper to reduce clearance or use standard type with 0.1mm clearance
- Flexible mounting options: screw directly into ejector plate or into the unit using appropriate socket head cap screws
- Pre-lubrication with grease recommended for initial wear protection during running-in period
- Bushing support recommended for long stroke applications to stabilize inclined pin
Component Specifications
| Item | Components | Parts Name | Material | Quantity |
|---|---|---|---|---|
| ① | Slide base | Slide Base | S55C | 2 |
| ② | Inclined pin holder | Inclined Pin Holder | SCM440 | 1 |
| ③ | Slide plate | Slide Plate | CAC304 + Solid lubricant | 2 |
| ④ | Parallel Key | Key | S45C | 1 |
| ⑤ | Stopper | Stopper | SS400 | 2 |
* High strength brass casting class 4 (Old JIS: HBsC4)
Technical Dimensions
| ①Slide Base | Dimensions (mm) | ②Inclined Pin Holder | ③Slide Plate | Part Number | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | H | C | D1 | d | d1 | h | h1 | h2 | a1 | hC | N | S | a | Type | D | ||
| 44 | 44 | 24 | 3 | 7.5 | 4.5 | 10 | 20 | 12 | 5 | 16 | 2.5 | 12 | 14 | 26 | 12 | 5 | SCY | 8 |
| 50 | 50 | 28 | 3 | 8.5 | 5.5 | 11 | 24 | 14 | 6 | 20 | 3 | 14 | 16 | 32 | 14 | 5 | SCY | 10 |
