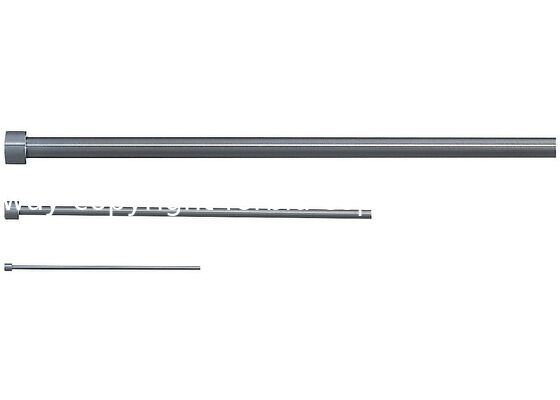

40～45HRC Base Material Injection Molding Tool 4mm Head JIS Head Blank Type

Large Image : 40～45HRC Base Material Injection Molding Tool 4mm Head JIS Head Blank Type Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	EPN

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Application:	Injection Mold	Size:	EPN
Standard:	Punch	Type:	SIDE INSTALLATION TYPE
Material:	Dies Steel SKD61	Heat Treatment:	Equivalent ＋ Nitriding
Highlight:	injection molding tool , self lubricating metal

40～45HRC Base Material Injection Molding Tool 4mm Head JIS Head Blank Type

High-performance injection molding tool featuring SKD61 equivalent material with nitriding treatment, designed for precision manufacturing applications.

Product Characteristics

Standard specification compliant
SKD61 equivalent material with nitriding treatment
Surface hardness: 900HV minimum
Base material hardness: 40～45HRC
Guaranteed base material hardness range
Guaranteed surface hardness for nitriding

Technical Specifications

4mm Head JIS Head	Type	Part Number L	H T H T P Selection
00	150
1.5			100, 150, 200
1.6, 1.7, 1.8, 1.9			100, 150, 200
2			100, 150, 200, 250, 300, 350, 400
2.1, 2.2, 2.3, 2.4			100, 150, 200, 250, 300
－ 2.5			100, 150, 200, 250, 300, 350, 400
2.6, 2.7, 2.8, 2.9			100, 150, 200, 250, 300
			400, 450, 500
3.5, 3.6 (4.1)	3.4, 3.7, 3.8, 3.9 (4.2, 4.3, 4.4)	100, 150, 200, 250, 300, 350, 400	100, 150, 200, 250, 300, 350, 400, 450, 500
8	4.5	100, 150, 200, 250, 300, 350, 400	(500)
4 EPN	(4.6), (4.7), (4.8), (4.9)		200, 300, 400
5		100, 150, 200, 250, 300, 350, 400	500 (600)
(5.2), (5.3), (5.4)			200, 300, 400
9	5.5	100, 150, 200, 250, 300, 350, 400	500
10	(5.6), (5.7), (5.8), (5.9)		200, 300, 400
6		100, 150, 200, 250, 300, 350, 400	500 (600) (700) (800)
J (6.1), (6.2), (6.3), (6.4)			200, 300, 400
10	11, 6.5	100, 150, 200, 250, 300, 350, 400	500 (600) (700)
7		100, 150, 200, 250, 300, 350, 400	500 (600) (700) (800) (900) (1000)
17	17, 12	100, 150, 200, 250, 300, 350, 400	(450) 500 (600) (700) (800) (900) (1000)
4, 5, 6, 7, 8, 18, 20, 21, 25, 30	13, 15, 16, 20, 25	100, 150, 200, 250, 300, 350, 400, 500	Various lengths up to 1000mm
