Graphite Bronze Bushing FPLB , Oil Bronze Bushing JIS Standard 5MM Thickness
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 5MM 10 MM 15 MM |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lubricating bronze bushings,5MM Thickness Self Lubricating Bearings |
||

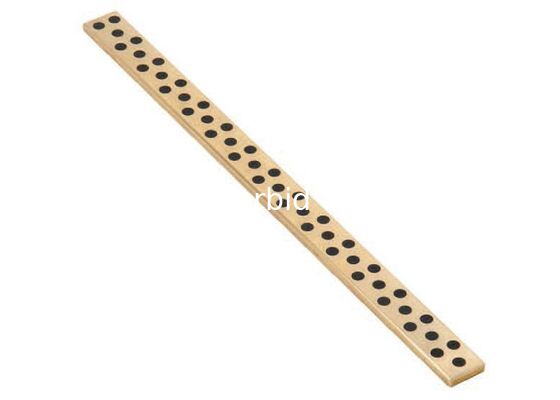

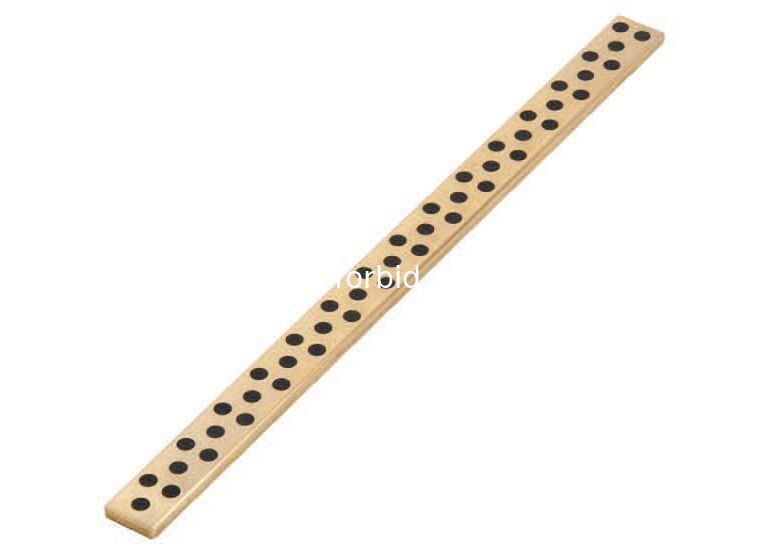

Graphite Bronze Bushing FPLB - Oil Bronze Bushing JIS Standard 5MM Thickness
High-performance graphite bronze bushing with 5mm thickness, manufactured to JIS standards for precision industrial applications.
Product Features
- Strategic lubricant placement ensures complete friction surface coverage during operation, with positioning optimized for specific movement directions
- Superior chemical and corrosion resistance with special graphite and PTFE lubricants featuring stable molecular structures
- Metal base materials selected based on application-specific chemical and corrosion resistance requirements
Product Operation
- Excellent performance in high-load, low-speed operating conditions
- Available in various standard sizes for diverse applications
- Ideal for reciprocating motions, oscillation, and frequent start-stop operations
Product Application
- High-performance operation under high-load and low-speed conditions
- Self-lubricating bearing with embedded solid lubricant conforming to ASTM Standards (C86300)
- Comprehensive range of standard sizes available
Wear Plate Specifications
| Base Metal | Material | Thickness | Code No. | Features |
|---|---|---|---|---|
| FC250 | Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed |
| Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed | |
| SS400 | Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited | |
| S45C | Graphite | 10 | TWX | Excellent sliding performance |
| Graphite | 10 | TWXT | Excellent sliding performance | |
| Copper alloy | Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops |
| Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWP | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWPT | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | |
| Graphite | 5 | UWP | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | |
| Steel (S45C) | Graphite | 20 | FRP | Surface hardness HRC40 or more, excellent in wear resistance |
| Steel (SKS3) | Graphite | 20 | TSP | Surface hardness HRC58 or more, greatly excellent in wear resistance |
