RWPW Brass Self Lubricating PSA Standard Wear Plate Customized Drawings
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Bronze With Graphite | Feature: | OEM Production,Long Life,oil Free |
|---|---|---|---|
| Lubrication: | Oil Free,Oil-free Self-lubricated | Standard: | PSA |
| Type: | Sliding,plate | Customized: | Customized Drawings,available |
| Highlight: | self lubricating polymer,self lubricating bronze bushings,Brass Self Lubricating Bearings |
||

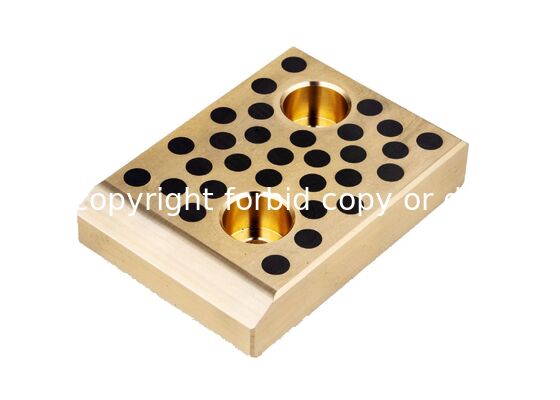

RWPW Brass Self Lubricating PSA Standard Wear Plate Customized Drawings

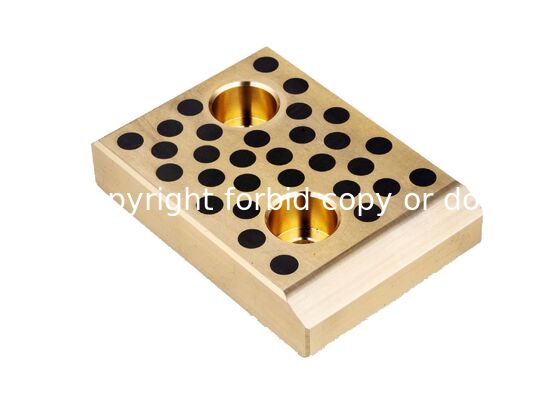

RWPW Brass Self Lubricating PSA Standard Wear Plate Customized Drawings
Product Features
- Superior performance reduces operational costs while maintaining clean working environments by eliminating external lubricants
- Maintains excellent performance characteristics even under high load and low rotating speed conditions
- Strategic solid lubricant arrangement ensures consistent lubrication across all friction surfaces during operation
Product Operation
- Available in various standard sizes to meet diverse application requirements
- Exceptional chemical resistance and corrosion resistance properties
- Operates efficiently without requiring additional lubrication maintenance
Product Application
- Delivers high performance in high-load and low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Maintenance-free operation without lubrication requirements
Wear Plate Specifications
| Base Metal | Oilless Type | Thickness | Code No. | Features |
|---|---|---|---|---|
| FC250 | Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed |
| Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed | |
| SS400 | Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited | |
| S45C | Copper Powder sintering | 10 | TWX | Excellent sliding performance at low/medium load and medium speed |
| Copper Powder sintering | 10 | TWXT | Excellent sliding performance at low/medium load and medium speed | |
| Copper alloy | Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWP | Excellent in load resistance and wear resistance | |
| Graphite | 10 | TWPT | Excellent in load resistance and wear resistance | |
| Graphite | 5 | UWP | Excellent in load resistance and wear resistance | |
| Steel (S45C) | Graphite | 20 | FRP | Since the surface hardness is HRC40 or more, it is excellent in wear resistance |
| Steel (SKS3) | Graphite | 20 | TSP | Since the surface hardness is HRC58 or more, it is greatly excellent in wear resistance |
