High Pressure Brass Self Lubricating Metal Oilless Bearing ISO9001 Certification
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 10mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lube bushings,High Pressure Brass Self Lubricating Bearings |
||

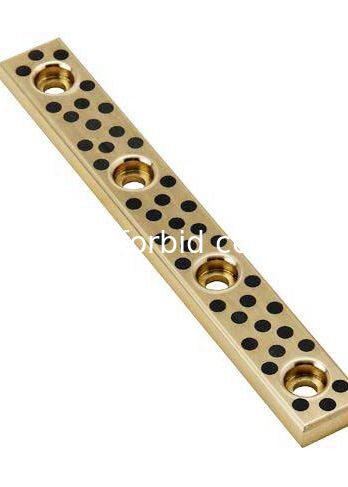

High Pressure Brass Self Lubricating Metal Oilless Bearing ISO9001 Certification
High Pressure Brass Self Lubricating Metal Oilless Bearing ISO9001 Certification
Product Features
- Self-lubricating operation without oil requirements due to the linear coefficient expansion of solid lubricant being greater than that of the metal base
- Reduces machinery maintenance costs and eliminates the need for oil lubrication across a wide range of applications
- Eliminates oiling equipment requirements while offering customizable designs to meet specific application needs
Product Operation Guidelines
- If additional machining is required, ensure the surface is not damaged and chamfer corners to eliminate sharp edges or burrs
- When reusing dies after extended storage, clean sliding surfaces that may have rusted and apply grease before operation
- The appearance of black or black-gray film on sliding surfaces during operation is normal - this special solid lubricant film should not be removed
Product Applications
- Delivers high performance in high-load, low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Operates effectively without requiring additional lubrication
Wear Plate Specifications
| Material | Thickness | Code No. | Features |
|---|---|---|---|
| FC250 Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed |
| FC250 Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed |
| SS400 Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| SS400 Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| S45C | 10 | TWX | |
| S45C | 10 | TWXT | |
| Copper alloy Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Copper alloy Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Copper alloy Graphite | 10 | TWP | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Copper alloy Graphite | 10 | TWPT | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Copper alloy Graphite | 5 | UWP | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Steel (S45C) Graphite | 20 | FRP | Since the surface hardness is HRC40 or more, it is excellent in wear resistance |
| Steel (SKS3) | 20 | TSP | Since the surface hardness is HRC58 or more, it is greatly excellent in wear resistance |
