Self Lube Bushings Code Number TWP / TWPT 10mm Thickness OEM Production
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 10mm |
|---|---|---|---|
| Screw: | 2 Holes Or 4 Holes | Feature: | OEM Production,Long Life,oil Free |
| Lubrication: | Oil Free,Oil-free Self-lubricated | Standard: | JIS |
| Highlight: | self lubricating bronze bushings,self lube bushings,10mm Self Lube Bushings |
||

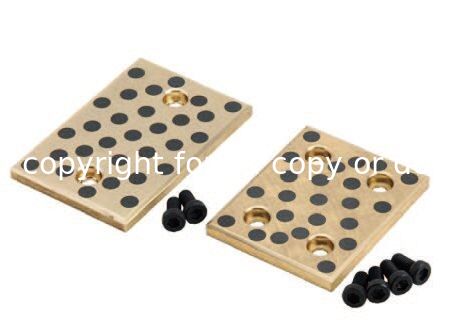

Self Lube Bushings Code Number TWP / TWPT 10mm Thickness OEM Production
Self Lube Bushings Code Number TWP / TWPT 10mm Thickness OEM Production
Product Features
- Eliminates oil lubrication equipment requirements while offering custom solid lubricant-inlaid bushing designs for specialized applications
- Self-lubricating operation without oil due to the linear coefficient expansion of solid lubricant exceeding that of the metal base
- Simplified design with broad application range; eliminates energy and time waste associated with oil delivery systems in mechanical design
Product Operation
- Operates without requiring lubrication
- Apply minimal grease for initial lubrication during die spotting
- Ideal for reciprocating motions, oscillation, and frequent start-stop operations
Product Application
- Delivers high performance under high-load and low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Maintenance-free operation without lubrication requirements
Wear Plate Specifications
| Base Metal | Material | Thickness | Code No. | Features |
|---|---|---|---|---|
| FC250 | Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed |
| Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed | |
| SS400 | Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited | |
| S45C | Copper Powder sintering | 10 | TWX | Excellent sliding performance at low/medium load and medium speed |
| Copper Powder sintering | 10 | TWXT | Excellent sliding performance at low/medium load and medium speed | |
| Copper alloy | Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops |
| Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWP | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWPT | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops | |
| Steel (S45C) | Graphite | 20 | FRP | Since the surface hardness is HRC40 or more, it is excellent in wear resistance |
| Steel (SKS3) | Graphite | 20 | TSP | Since the surface hardness is HRC58 or more, it is greatly excellent in wear resistance |
