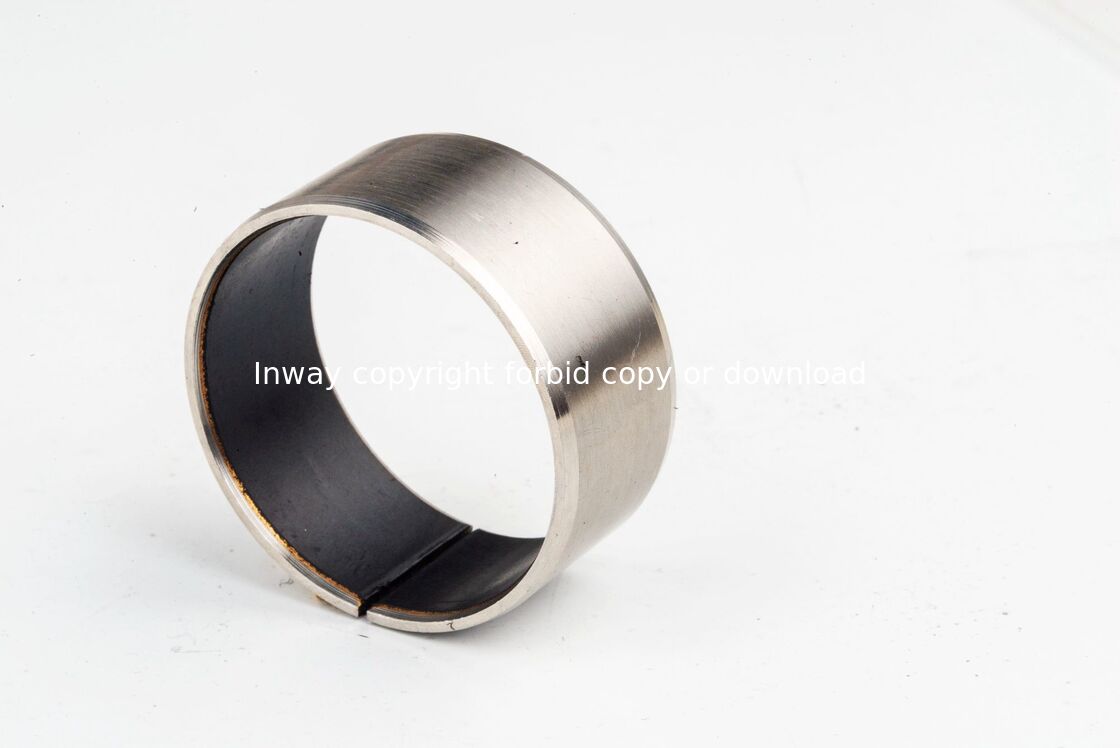

Hydraulic Composite Bushings SF-1D Bronze PTFE Stainless Steel Material
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN 1494 | Material: | Stainless Steel |
| Type: | With Split | Technical: | Dry Bushing |
| Highlight: | composite bearing,compound bearings |
||
Hydraulic Composite Bushings SF-1D Bronze PTFE Stainless Steel Material
High-performance composite bushings featuring bronze PTFE and stainless steel construction for demanding industrial applications.
Key Features
- Suitable for dry running with low coefficient of friction
- Excellent wear resistance and sliding characteristics
- Transfer film protects mating metal surfaces
- Ideal for rotating and oscillating movements
- High chemical resistance and low water absorption
- Enhanced friction and wear resistance over standard CSB-50 range
- Widely used in chemical, food, pumping, valves, and ocean industries
Multi-Layer Structure
1. PTFE/Fibre Mixture (0.01-0.03mm thickness): Provides excellent initial transfer film that coats mating surfaces, forming an oxide-type solid lubricant film.
2. Sintered Bronze Powder (0.20-0.35mm thickness): Offers maximum thermal conductivity away from bearing surface and serves as reservoir for PTFE-Fibre mixture.
3. Stainless Steel Backing (SUS304, 314, 440): Provides exceptional stability, load carrying capacity, heat dissipation, and resistance to strong acid and alkali environments.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. Static Load | 250 N/mm² | Max. Speed (Dry Running) | 0.08-0.20 m/s |
| Very Low Speed Load | 140 N/mm² | Hydrodynamic Operation | 0.02-0.08 m/s |
| Rotating/Oscillating Load | 60 N/mm² | Friction Coefficient (Dry) | 2 m/s |
| Max. PV (Dry Running - Short-term) | 3.6 N/mm²·m/s | Thermal Conductivity | 42 W/(m·K) |
| Max. PV (Dry Running - Continuous) | 1.8 N/mm²·m/s | Temperature Range | -195℃ to +280℃ |
| PV Max. Hydrodynamic | - | Coefficient of Thermal Expansion | 11×10⁻⁶/K |
Industry Applications
SBU-S bearings offer oil resistance, acid resistance, and seawater resistance. The lead-free PTFE surface layer makes them particularly suitable for:
- Food machinery and processing equipment
- Alkali flow meters and pump motion elements
- Pharmaceutical manufacturing machines
- Printing machinery and equipment
- Chemical engineering systems
- Marine and ocean industry applications
Additional Applications
- Automotive: Tractors, combines, crop sprayers, earth-movers, graders, construction equipment, power steering cylinders, steering gear thrust washers, disc brakes, calipers, pistons, shock absorbers
- Business Machines: Photocopiers, typewriters, mail sorters, postage meter systems, computer printers, automatic printing devices
- Hydraulics & Valves: Gear pumps, rotary pumps, water pumps, axial piston pumps, ball valves, butterfly valves, poppet steam valves
- Home Appliances: Tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, washing machines
