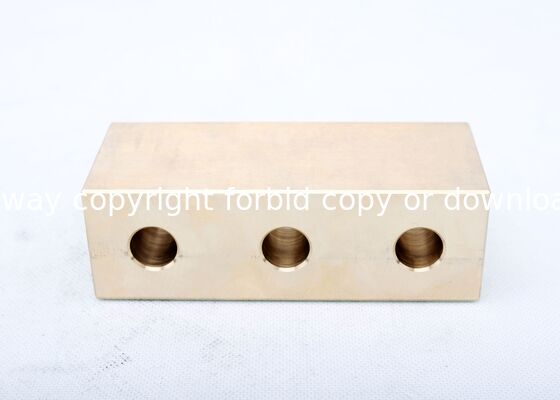

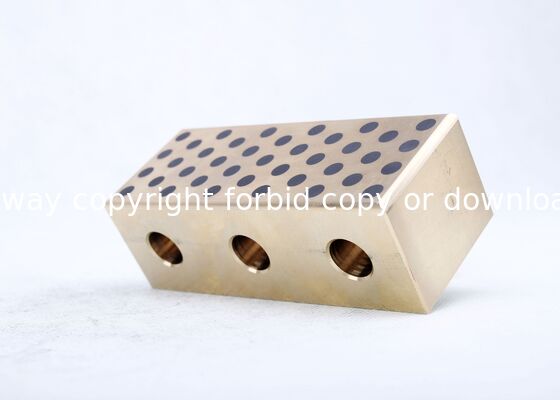

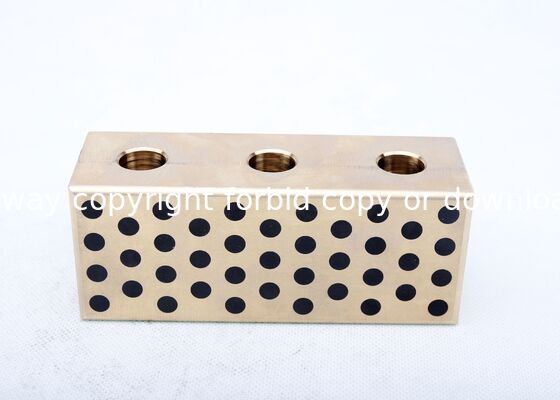

Cam Slider Plate VG2 Self Lubricating Bearings Copper Alloy Graphite Pluged
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Steel | Thickness: | 30 Mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | European | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lubricating bronze bushings,Copper Alloy Self Lubricating Bronze Bushings |
||
Cam Slider Plate VG2 Self Lubricating Bearings Copper Alloy Graphite Pluged
Cam Slider Plate VG2 Self Lubricating Bearings Copper Alloy Graphite Pluged
Product Features
- Simple and efficient design for widespread applications; eliminates the need for oil lubrication systems, reducing energy waste and simplifying mechanical design
- Utilizes specialized graphite with excellent self-lubricating properties to create bearings with comprehensive performance advantages
- Maintains wear resistance even in challenging conditions where oil film formation is difficult due to reciprocating, rocking movements, and frequent starts and stops
Product Operation
- The sliding surface develops a black or black-gray film during operation due to the special solid lubricant - this is normal and should not be removed
- Demonstrates superior wear resistance in applications where oil film formation is minimal
- When reusing dies after long-term storage, clean any rust from sliding surfaces and apply grease before operation
Product Application
- Delivers high performance under high-load and low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Operates effectively without requiring additional lubrication
Wear Plate Specifications
| Base Metal | Oilless Type | Material | Thickness | Code No. | Features |
|---|---|---|---|---|---|
| FC250 | Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed | |
| Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed | ||
| SS400 | Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited | |
| Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited | ||
| S45C | Copper Powder sintering | 10 | TWX | Excellent sliding performance | |
| Copper Powder sintering | 10 | TWXT | Excellent sliding performance | ||
| Copper alloy | Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | |
| Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Good performance in reciprocating and frequent starts and stops | ||
| Graphite | 10 | TWP | Excellent in load resistance and wear resistance | ||
| Graphite | 10 | TWPT | Excellent in load resistance and wear resistance | ||
| Graphite | 5 | UWP | Excellent in load resistance and wear resistance | ||
| Steel (S45C) | Graphite | 20 | FRP | Surface hardness HRC40 or more, excellent in wear resistance | |
| Steel (SKS3) | Graphite | 20 | TSP | Surface hardness HRC58 or more, greatly excellent in wear resistance |
