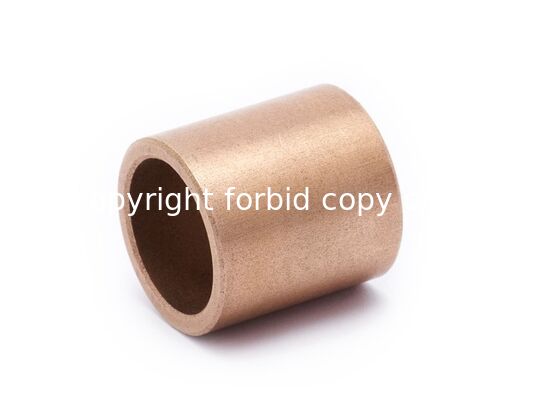

INW15-01 Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type

Large Image : INW15-01 Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	INW-1501

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Material:	CuSn10	Lubricating:	Lubricated
Application:	Tyer Mould	Size:	Customized
Structure:	Powder Metallurgy	Standard:	JIS
Highlight:	Sleeve Type Sintered Metal Bearings , CuSn10 Sintered Bronze Bearing , Powder Metallurgy Sintered Bronze Bearing

INW15-01 Oil Sintered Bronze Bearing

The INW15-01 is a high-performance sintered bronze bearing manufactured using advanced powder metallurgy technology. This CuSn10 composition bearing is oil-impregnated for superior self-lubrication and is designed for medium-speed, low-load applications.

Product Overview

INW-1501 sintered bronze bearings are produced by pressing bronze powder under high pressure and sintering at elevated temperatures, followed by oil impregnation for enhanced lubrication performance. These bearings can operate without additional oil for short periods and offer excellent dimensional precision with cost-effective manufacturing.

Key Applications

Miniature electrical components
Home appliances and electrical tools
Textile machinery and chemical equipment
Automotive industry components
Office equipment and machinery

Manufacturing Process

INW-1501 series bearings are manufactured from bronze or iron powder, pressed under high pressure using precision molds, sintered at high temperatures, and vacuum-impregnated with oil to ensure optimal lubrication throughout the bearing's service life.

Technical Specifications

Parameter	Unit	Bronze (CuSn10)	Iron
Material Composition		90% Cu, 10% Sn	99.9% Fe
Density	g/cm³	6.4-6.8	5.7-5.9
Static Load	N/mm²	-	500
Maximum Linear Speed	m/s	7	5
Oil Impregnation Volume	%	22	22
Hardness	HB	35	-
Friction Coefficient	μ	0.03	0.025
Traction Resistance	MPa	10-20	18-26
Elongation	%	-	2-4
Operating Temperature Range	°C	-20 to +120	-20 to +120

Available Dimensions

Code No.	ID (mm)	OD (mm)	L (mm)	Chamfer f×45°
INW-1501 20-25-25	20	25	25	0.8
INW-1501 20-26-15	20	26	15	0.8
INW-1501 20-26-20	20	26	20	0.8
INW-1501 20-26-25	20	26	25	0.8
INW-1501 20-26-30	20	26	30	0.8
INW-1501 20-28-20	20	28	20	0.8
INW-1501 20-28-30	20	28	30	0.8
INW-1501 20-28-40	20	28	40	0.8
INW-1501 20-40-40	20	40	40	0.8
INW-1501 22-27-15	22	27	15	0.8
INW-1501 30-38-30	30	38	30	0.8
INW-1501 30-38-40	30	38	40	0.8
INW-1501 30-40-15	30	40	15	0.8
INW-1501 30-40-30	30	40	30	0.8
INW-1501 30-40-45	30	40	45	0.8
INW-1501 30-40-60	30	40	60	0.8
INW-1501 30-50-60	30	50	60	0.8
INW-1501 35-41-25	35	41	25	0.8
INW-1501 35-41-35	35	41	35	0.8
INW-1501 35-41-40	35	41	40	0.8
INW-1501 40-50-50	40	50	50	0.8
INW-1501 40-50-60	40	50	60	0.8
INW-1501 40-50-80	40	50	80	0.8
INW-1501 45-51-35	45	51	35	0.8
INW-1501 45-51-45	45	51	45	0.8
INW-1501 45-51-55	45	51	55	0.8
INW-1501 45-55-35	45	55	35	0.8
INW-1501 45-55-45	45	55	45	0.8
INW-1501 45-55-55	45	55	55	0.8
INW-1501 45-55-60	45	55	60	0.8
INW-1501 60-75-90	60	75	90	1
INW-1501 60-85-90	60	85	90	1
INW-1501 65-75-60	65	75	60	1
INW-1501 65-75-90	65	75	90	1
INW-1501 65-80-60	65	80	60	1
INW-1501 65-80-90	65	80	90	1
INW-1501 70-80-60	70	80	60	1
INW-1501 70-80-90	70	80	90	1
INW-1501 70-85-60	70	85	60	1
INW-1501 70-85-90	70	85	90	1
INW-1501 85-95-100	85	95	100	2
INW-1501 85-100-100	85	100	100	2
INW-1501 90-105-80	90	105	80	2
INW-1501 90-110-80	90	110	80	2
INW-1501 100-120-80	100	120	80	2
