Sintered Bronze Bushing ISO 9448-6 Self Lube Wear Plates Busing / Sliding Plates Sintered Alloy
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Steel With Sintered Bronze | Harrness: | 56 Or More HRC |
|---|---|---|---|
| Lubricating: | Oil Groove | Type: | Flanged |
| Highlight: | Flanged Sintered Bronze Bush,ISO 9448-6 Self Lube Wear Plates,Sintered Bronze Bushing ISO 9448-6 |
||
Sintered Bronze Bushing ISO 9448-6 Self-Lubricating Wear Plates & Sliding Components
High-performance sintered bronze bushings and wear plates designed for industrial applications requiring self-lubricating properties and exceptional durability.
Product Capabilities
- Comprehensive range of sintered material components

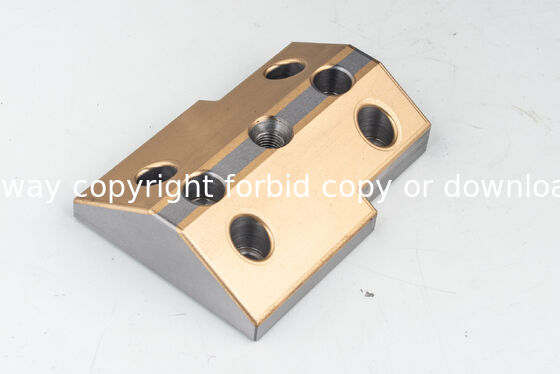

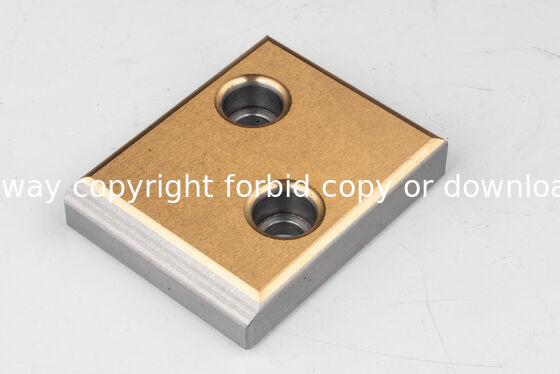

- Specialized sintered wear plates for high-abrasion applications
- Sintered steel guide bushings with precision engineering
- Steel guide bushings with ECO compatibility
- V-type sintered sliding parts for specialized applications
Application Specifications

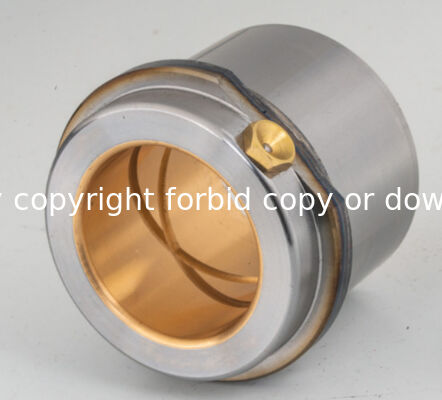

Steel Headed Guide Bushes with optimized oil groove design, specifically engineered for guide pin applications in stamping die moulds and precision tooling systems.
Technical Advantages
INW series Sintered Bronze Bushings establish new performance benchmarks for stamping die guide bushings. The innovative manufacturing process creates a mechanical bond between the bronze layer and steel bushing that surpasses traditional plated bushings in strength and durability. These bushings eliminate peeling issues common with plated alternatives.
The porous sintered bronze surface effectively retains lubrication oil, maintaining boundary layer integrity and delivering superior wear resistance. The inserted diameter is hardened to withstand wear and accidental damage while maintaining precise geometry through multiple assembly cycles. The precision-ground flange ensures perpendicular alignment to the bore axis, guaranteeing true positioning when properly seated.
Technical Specifications
| Code No. | d1 H5 | d3 H6 | d4 | d5 | d6 | d7 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|---|
| INW-019 | 19 | 32 | 32 | 40 | 52 | 64.7 | 35 | 23 | 12 |
| INW-020 | 20 | 32 | 32 | 40 | 52 | 64.7 | 35 | 23 | 12 |
| INW-024 | 24 | 40 | 40 | 48 | 60 | 72.7 | 42 | 30 | 12 |
| INW-025 | 25 | 40 | 40 | 48 | 60 | 72.7 | 42 | 30 | 12 |
| INW-030 | 30 | 48 | 48 | 56 | 67 | 79.7 | 52 | 37 | 12 |
| INW-032 | 32 | 48 | 48 | 56 | 67 | 79.7 | 52 | 37 | 12 |
| INW-038 | 38 | 58 | 58 | 66 | 77 | 89.7 | 65 | 47 | 15 |
| INW-040 | 40 | 58 | 58 | 66 | 77 | 89.7 | 65 | 47 | 15 |
| INW-048 | 48 | 70 | 70 | 80 | 91 | 103.7 | 80 | 60 | 18 |
| INW-050 | 50 | 70 | 70 | 80 | 91 | 103.7 | 80 | 60 | 18 |
| INW-060 | 60 | 85 | 85 | 95 | 106 | 118.7 | 80 | 60 | 20 |
| INW-063 | 63 | 85 | 85 | 95 | 106 | 118.7 | 80 | 60 | 20 |
| INW-080 | 80 | 105 | 105 | 118 | 129 | 141 | 80 | 60 | 20 |
