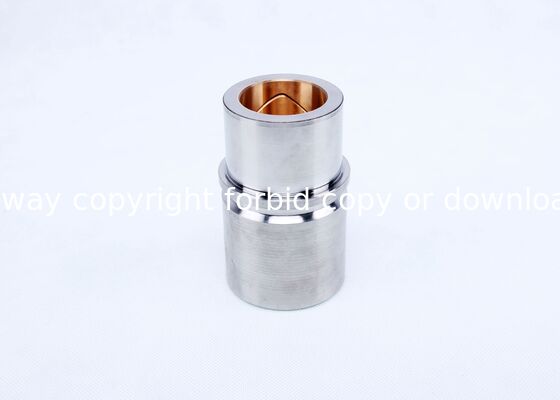

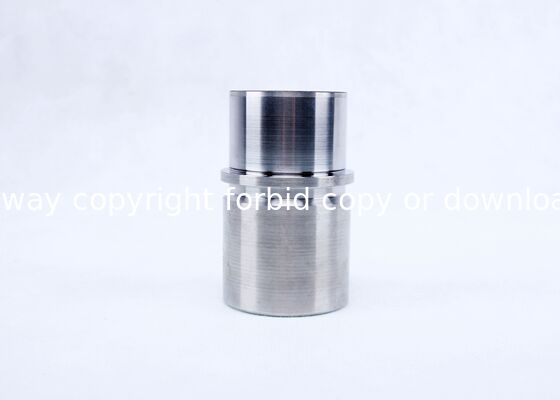

High Precision Sintered Metal Bearings According To European Standard Customized Size

Large Image : High Precision Sintered Metal Bearings According To European Standard Customized Size Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	INW-019-043

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Material:	Steel Sintered With Layer	Application:	Guide Pin
Size:	Customized	Standard:	ISO9448-6
Type:	Headed Guide Bush	Precision Rating:	High Precision
Highlight:	Customized Size Sintered Metal Bearings , sintered bronze bearing , High Precision Sintered Metal Bearings

High Precision Sintered Metal Bearings

Customized size sintered metal bearings manufactured according to European standards, designed specifically for stamping die applications.

Product Overview

Steel headed guide bushes with oil groove design, suitable for guide pins in stamping die moulds.

Technical Advantages

Superior Bonding Technology: Bronze layer sintered to steel bushing interior creates a mechanical bond stronger than traditional plated bushings
Eliminates Peeling: Unlike plated bushings, sintered bronze construction prevents peeling and separation
Enhanced Lubrication: Porous sintered bronze surface retains lubrication oil, maintaining boundary layer integrity and improving wear resistance
Durable Construction: Inserted diameter hardened to resist wear and accidental damage
Precision Ground Flange: Carefully ground perpendicular to axis ensures proper seating and true bore alignment

Product Specifications

Code No.	d H5	d1 j6	d2	d3	d4	L	l1	l2
INW-019-043-01	19	32	32	39	40	43	20	23
INW-019-059-01	19	32	32	39	40	59	36	23
INW-020-043-01	20	32	32	39	40	43	20	23
INW-020-059-01	20	32	32	39	40	59	36	23
INW-024-059-01	24	40	40	46	48	59	36	23
INW-024-079-01	24	40	40	46	48	79	56	23
INW-025-059-01	25	40	40	46	48	59	36	23
INW-025-079-01	25	40	40	46	48	79	56	23
INW-030-075-01	30	48	48	53	56	75	45	30
INW-030-093-01	30	48	48	53	56	93	63	30
INW-032-075-01	32	48	48	53	56	75	45	30
INW-032-093-01	32	48	48	53	56	93	63	30
INW-038-082-01	38	58	58	63	66	82	45	37
INW-038-108-01	38	58	58	63	66	108	71	37
INW-040-082-01	40	58	58	63	66	82	45	37
INW-040-108-01	40	58	58	63	66	108	71	37
INW-048-097-01	48	70	70	77	80	97	50	47
INW-048-127-01	48	70	70	77	80	127	80	47
INW-050-097-01	50	70	70	77	80	97	50	47
INW-050-127-01	50	70	70	77	80	127	80	47
INW-060-116-01	60	85	85	92	95	116	56	60
INW-060-150-01	60	85	85	92	95	150	90	60
INW-063-116-01	63	85	85	92	95	116	56	60
INW-063-150-01	63	85	85	92	95	150	90	60
INW-080-120-01	80	105	105	115	118	120	60	60
INW-080-150-01	80	105	105	115	118	150	90	60
