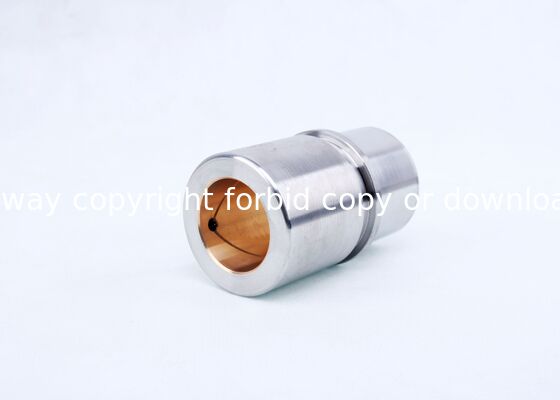

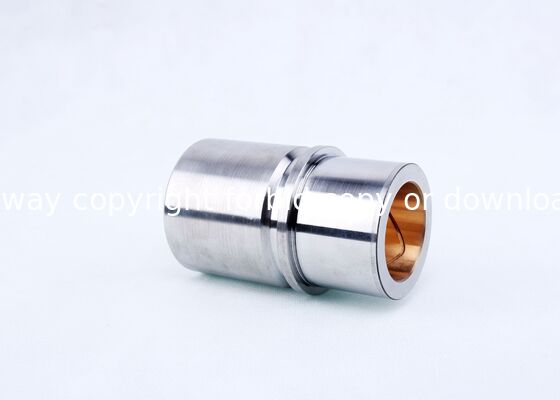

European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer

Large Image : European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	INW 81.81

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Material:	Steel Sintered With Layer	Application:	Guide Pin
Size:	Customized	Standard:	ISO9448-6
Type:	Stright	Precision Rating:	High Precision
Highlight:	sintered bronze bush , self lube wear plates , European Standard Sintered Metal Bearings

European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer

European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer. These precision bushings feature easy installation with a light tap to locate the register diameter in the bushing hole, then secured firmly with clamps and screws.

Product Features

All INW bushings include figure 8 oil grooves and lubrication fittings
Sintered bronze pores act as small oil reservoirs for extended lubrication
Forgiving design if maintenance is overlooked, but regular lubrication recommended
Compatible with high viscosity oil (specialized oil available upon request)

Advantages of Sintered Bronze Bushings

Thicker Bronze: Sintered bronze is substantially thicker than traditional plating technology
Porous Surface: Holds lubrication oil where needed most to resist wear with up to 40% porosity

Specifications

Code No.	d H5	d1 j6	d2	d3	d4	L	l1	l2
INW-019-043-02	19	32	32	39	40	43	20	23
INW-019-059-02	19	32	32	39	40	59	36	23
INW-020-043-02	20	32	32	39	40	43	20	23
INW-020-059-02	20	32	32	39	40	59	36	23
INW-024-059-02	24	40	40	46	48	59	36	23
INW-024-079-02	24	40	40	46	48	79	56	23
INW-025-059-02	25	40	40	46	48	59	36	23
INW-025-079-02	25	40	40	46	48	79	56	23
INW-030-075-02	30	48	48	53	56	75	45	30
INW-030-093-02	30	48	48	53	56	93	63	30
INW-032-075-02	32	48	48	53	56	75	45	30
INW-032-093-02	32	48	48	53	56	93	63	30
INW-038-082-02	38	58	58	63	66	82	45	37
INW-038-108-02	38	58	58	63	66	108	71	37
INW-040-082-02	40	58	58	63	66	82	45	37
INW-040-108-02	40	58	58	63	66	108	71	37
INW-048-097-02	48	70	70	77	80	97	50	47
INW-048-127-02	48	70	70	77	80	127	80	47
INW-050-097-02	50	70	70	77	80	97	50	47
INW-050-127-02	50	70	70	77	80	127	80	47
INW-060-116-02	60	85	85	92	95	116	56	60
INW-060-150-02	60	85	85	92	95	150	90	60
INW-063-116-02	63	85	85	92	95	116	56	60
INW-063-150-02	63	85	85	92	95	150	90	60
INW-080-120-02	80	105	105	115	118	120	60	60
INW-080-150-02	80	105	105	115	118	150	90	60
