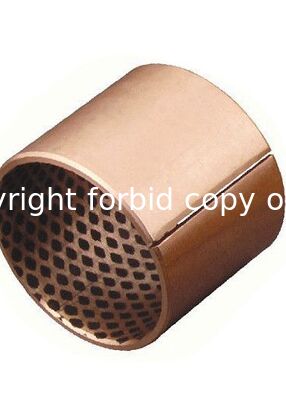

Cast Bronze Bearings INW-09G CSB-09G CuSn8 With Graphite Pluged ISO9001 Certification
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | ISO 3547 | Material: | CuSn8 |
| Type: | With Through Holes | Technical: | Wrapped Bronze |
| Highlight: | cast bronze bearings,small brass bushings |
||
Cast Bronze Bearings INW-09G CSB-09G CuSn8 With Graphite Pluged ISO9001 Certification

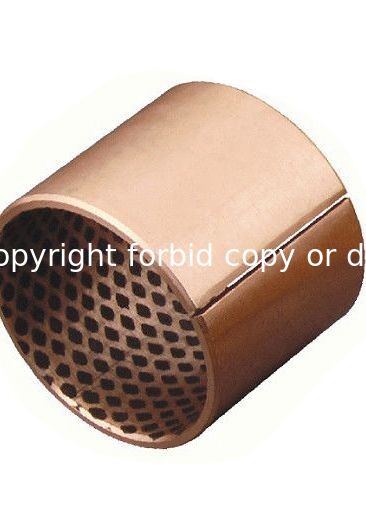

INW-09G bronze embedded with solid lubricating bushing. Made from bronze with excellent elongation rate properties, this bushing can be manufactured with very thin wall thickness. The embedded lubricant provides ideal lubrication, making these bushings suitable for auto transmission shafts and other applications requiring oil-free operation.
Bronze-wrapped Bearing Specifications
| Surface Material | CuSn6.5P0.1 + Gr |
| Load Capacity | 65 N/mm² |
| Friction Coefficient (µ) | 0.06 - 0.2 |
| Temperature Limit | -100°C to 260°C |
| Speed Limit | 4 m/s |
Product Details
| Product Name | INW-09G Bronze Wrapped Bearings |
| Material | CuSn8/CuSn6.5P0.1 + graphite |
| Standard | ISO3547 (DIN1494) |
Key Characteristics
- Excellent wear and low friction performance across wide load, speed, and temperature ranges in dry running conditions
- Superior performance in lubricated applications
- Outstanding performance in greased applications
- Suitable for linear, oscillating, and rotating movements
Technical Data
| Maximum Load | |
| Static Load | 120 N/mm² |
| Dynamic Load | 40 N/mm² |
| Operating Temperature | |
| Minimum | -40°C |
| Maximum (Greased) | 150°C |
| Maximum (Oil Lubricated) | 250°C |
| Grease/Oil Lubricated | |
| Maximum Sliding Speed | 2.5 m/s |
| Maximum PV Factor | 2.8 N/mm²*m/s |
| Coefficient of Friction | 0.05-0.15 |
