Wrapped Bronze Bearings INW-091 CSB-T90S CuSn8 SEAL Or Wiper Rings Metric Size
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | ISO 3547 | Material: | CuSn8 |
| Type: | With Through Holes | Technical: | Wrapped Bronze |
| Highlight: | cast bronze bearings,small brass bushings |
||

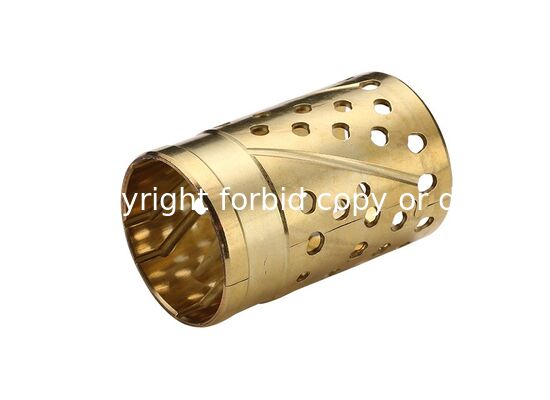

Wrapped Bronze Bearings INW-091 CSB-T90S CuSn8 SEAL Or Wiper Rings Metric Size
INW-091 bearings are manufactured from cold-formed homogenous bronze CuSn8 (alternative CuPb10Sn10) with exceptional material properties. These wrapped bronze bearings are engineered for demanding applications across various industries.
Bronze Alloy Specifications
| Bronze Alloy | Chemical Element (%) | Type |
|---|---|---|
| CuSn8 | Cu=91.3% Sn=8.5% P=0.2% Pb=0% Zn=0% | Lead Free |
| CuSn10Pb10 | Cu=Balance. Sn=9~11%, Pb=9~11% | With Lead |
Key Features
- Easy installation and lubrication
- High load capacity for demanding applications
- Excellent wear resistance with reduced friction
- Superior thermal conductivity
- Compact dimensions for space-constrained applications
- Chemical resistance for harsh environments
- Extended service life and lubrication intervals compared to standard SB-090 type bearings
- Compatible with various lubricants
- Integrated dust and particle collection in holes
- Initial pre-lubrication required during assembly
Typical Applications
These wrapped bronze bearings are widely used in hoisting equipment, construction machinery, automotive applications, tractors, trucks, machine tools, and mineral engines. They can be fabricated into various configurations including bushes, half bearings, flanged bushes, thrust washers, and spherical bearings.
