INW-092F Cast Bronze Bushings CSB-T90F Through Holes CuSn8 ISO3547
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | ISO 3547 | Material: | CuSn8 |
| Type: | With Through Holes | Technical: | Wrapped Bronze |
| Highlight: | cast bronze sleeve bearings,cast bronze bearings |
||

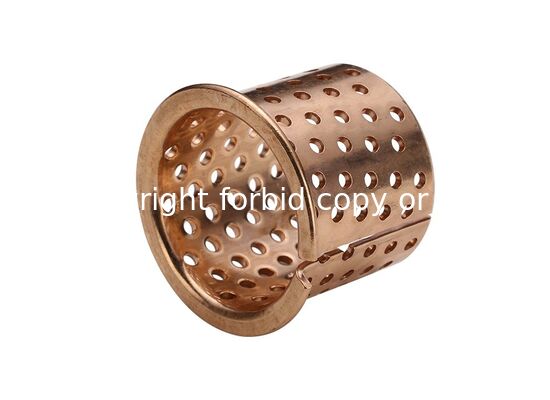

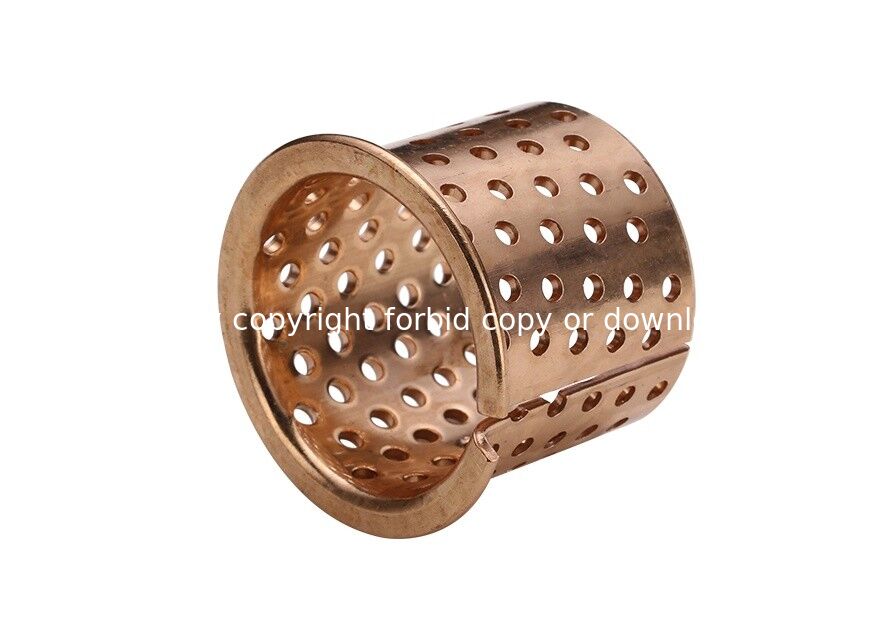

INW-092F Cast Bronze Bushings CSB-T90F Through Holes CuSn8 ISO3547
INW-092F CSB-T90 Bronze Wrapped Bearing with Through Holes CuSn8 ISO3547 Straight type. These bearings are wrapped from a cold formed homogenous bronze CuSn8 (alternative CuPb10Sn10) with exceptional material properties.
Bronze Alloy Specifications
| Bronze Alloy | Chemical Element (%) | Type |
|---|---|---|
| CuSn8 | Cu=91.3% Sn=8.5% P=0.2% Pb=0% Zn=0% | Lead Free |
| CuSn10Pb10 | Cu=Balance. Sn=9~11%, Pb=9~11% | With Lead |
Product Features
- Easy fitting and lubrication
- High load capacity
- Excellent wear resistance with lower friction
- High level thermal conductivity
- Minimum overall dimensions
- Chemical resistance
- Extended service life and lubrication intervals compared to normal SB-090 type bearings
- Free selection of lubricants
- Collection of dust and rub off particles in the holes
- Initial pre-lubrication at assembly is required
Typical Applications
This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machine tools, and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, thrust washers, spherical bearings, and more.
