INW-090 Bronze Wrapped Bearing with Oil Pockets CuSn8 ISO3547 Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | ISO 3547 | Material: | CuSn8 |
| Type: | With Oil Pocket | Technical: | Wrapped Bronze |
| Highlight: | cast bronze sleeve bearings,cast bronze bearings |
||

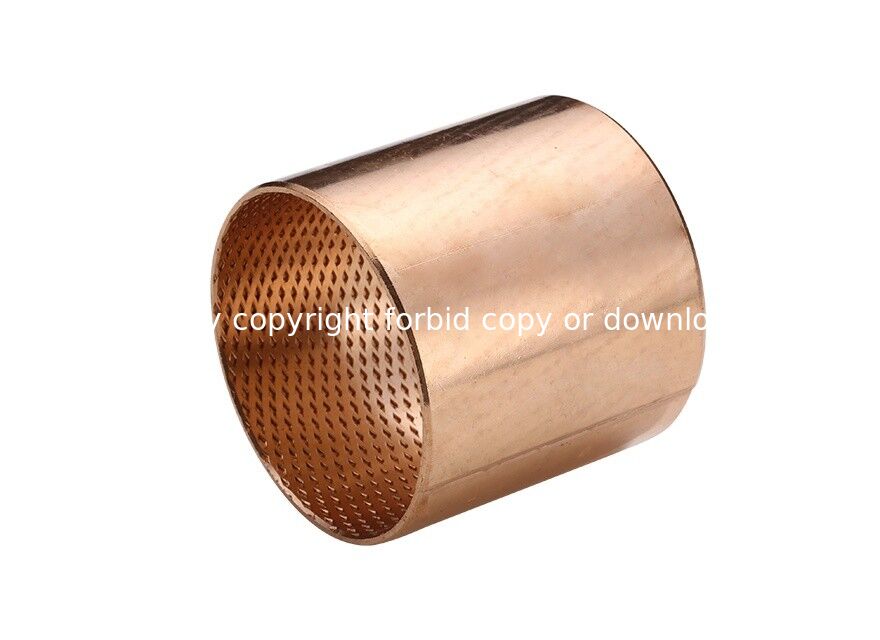

INW-090 Bronze Wrapped Bearing with Oil Pockets CuSn8 ISO3547 Standard
INW-090 bearings are manufactured from cold-formed homogeneous bronze CuSn8 (alternative CuPb10Sn10) with exceptional material properties. Standard sizes feature diamond-shaped lubrication indents in the bearing surface that serve as lubricant reservoirs to rapidly build up a lubrication film at startup and reduce running friction. This material is ideal for construction and agricultural machinery applications.
Bronze Alloy Composition
| Bronze Alloy | Chemical Element (%) | Type |
|---|---|---|
| CuSn8 | Cu=91.3% Sn=8.5% P=0.2% Pb=0% Zn=0% | Lead Free |
| CuSn10Pb10 | Cu=Balance. Sn=9~11%, Pb=9~11% | With Lead |
Key Features
- Suitable for dry running with low coefficient of friction
- Low wear rate with excellent sliding characteristics
- Transfer film protects mating metal surfaces
- Ideal for rotary and oscillating movements
- High chemical resistance
- Reduced water absorption and swelling
- Excellent performance with lubrication
Typical Applications
This bushing type is widely used in hoisting machines, construction equipment, automobiles, tractors, trucks, machine tools, and mineral engines. It can be fabricated into various forms including bushes, half bearings, flanged bushes, thrust washers, and spherical bearings.
Product Images
