Bronze Bushing Lubrication JF800 CSB-800 Wrapped for Track Roller
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Track Roller | Size: | Standard |
|---|---|---|---|
| Standard: | DIN1494 | Material: | Steel +CuSn10Pb10 |
| Type: | Straight | Technical: | Wrapped Bronze |
| Highlight: | bimetal bushing,bimetal bearing bushes |
||

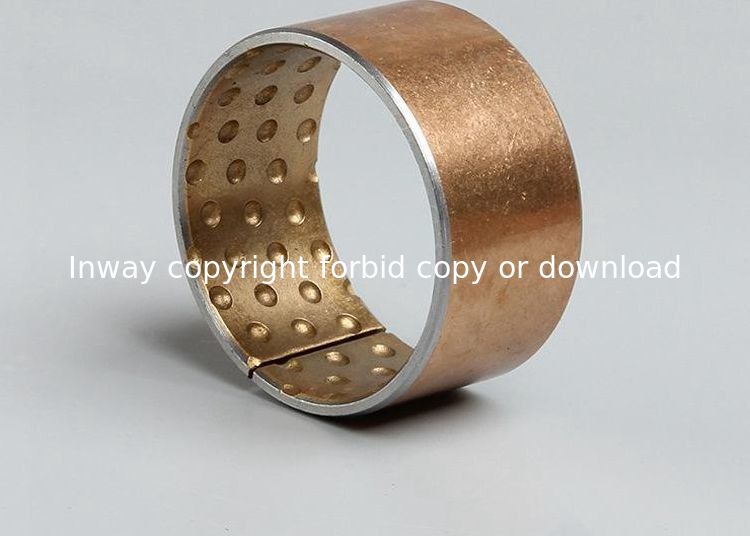

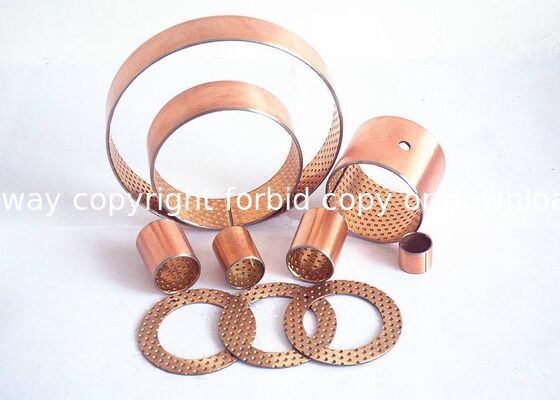

Bronze Bushing Lubrication JF800 CSB-800 Wrapped for Track Roller
The JF-800 bimetal bushing features a steel base sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. As the strongest type of bi-metal bushings, it offers superior performance within the Cu-Pb alloy construction range. This makes it ideal for applications requiring medium speed and high impact resistance.
Key Features
Steel shell backed with lead bronze lining for oil-lubricated applications, offering high load capacity and excellent fatigue properties
Sintered bronze layer provides superior wear resistance and exceptional load carrying capacity
Steel backing ensures exceptional stability, superior load carrying, and efficient heat dissipation
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. Load (Static) | 250 N/mm² | Alloy Hardness | HB 60-100 |
| Operating Load | 140 N/mm² | Temperature Range | -40℃ to +250℃ |
| Coefficient of Friction | 0.05-0.12 | Max. Speed | 2.5 m/s |
| Max. PV Value | 2.8 N/mm²*m/s | Thermal Conductivity | 60 W/(m*K) |
| Shear Strength | 170 N/mm² | Coefficient of Thermal Expansion | 14×10⁻⁶ K⁻¹ |
