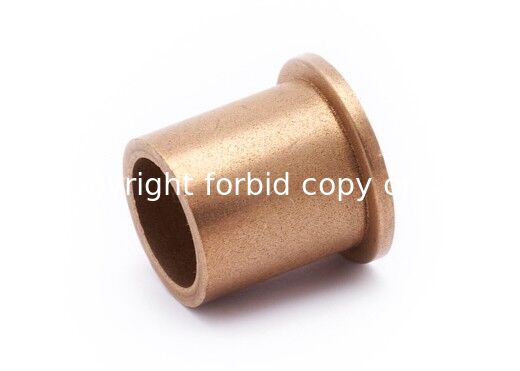

INW15-01F Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Flange Type

Large Image : INW15-01F Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Flange Type Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	INW-1501F

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Features:	Maintenance Free Bushing	Material:	CuSn10
Lubricating:	Lubricated	Type:	Flange
Size:	Customized	Structure:	Powder Metallurgy
Highlight:	Flange Type Sintered Bronze Bearing , Flange Type Sintered Metal Bearings , Custom Sintered Bronze Bearing

INW15-01F Oil Sintered Bronze Bearing

INW15-01F Oil Sintered Bearing is manufactured from CuSn10 sintered bronze using powder metallurgy technology with flange type design. This high-performance bearing offers reliable operation in medium speed and low load applications.

Product Overview

The INW-1502 sintered bronze bearing is produced by pressing bronze powder under high pressure and sintering at high temperatures, followed by oil impregnation for superior lubrication. Designed for cost-effective performance with high dimensional precision, these bearings can operate without oil for short periods and are suitable for various industrial applications.

Applications

Mini electrical components
Home appliances
Electrical tools
Textile machinery
Chemical industry equipment
Automotive industry
Office equipment

Manufacturing Process

INW-1501 series bearings are manufactured from bronze or iron powder, pressed under high pressure using molds, sintered at high temperatures, and vacuum-impregnated with oil for optimal lubrication performance.

Technical Specifications

Parameter	Unit	Bronze Material	Iron Material
Material Composition		90% Cu, 10% Sn	99.9% Iron
Density	g/cm³	6.4-6.8	5.7-5.9
Static Load	N/mm²	-	500
Maximum Linear Speed	m/s	7	5
Oil Impregnation Volume	%	22	22
Hardness	HB	35	-
Friction Coefficient	µ	0.03	0.025
Traction Resistance	MPa	10-20	18-26
Elongation	%	-	2-4
Operating Temperature Range	°C	-20 to +120	-20 to +120

Standard Dimensions

Code No.	d (mm)	D (mm)	L (mm)	d1 (mm)
INW-1501F 10-13-10	10	13	10	16
INW-1501F 10-13-16	10	13	16	16
INW-1501F 10-13-20	10	13	20	16
INW-1501F 10-16-8	10	16	8	20
INW-1501F 10-16-8	10	16	8	22
INW-1501F 10-16-10	10	16	10	20
INW-1501F 10-16-10	10	16	10	22
INW-1501F 10-16-16	10	16	16	22
INW-1501F 12-18-8	12	18	8	24
INW-1501F 12-18-10	12	18	10	22
INW-1501F 12-18-12	12	18	12	22
INW-1501F 12-18-12	12	18	12	24
INW-1501F 12-18-20	12	18	20	24
INW-1501F 14-20-10	14	20	10	25
INW-1501F 14-20-10	14	20	10	26
INW-1501F 14-20-12	14	20	12	25
INW-1501F 14-20-14	14	20	14	26
INW-1501F 14-20-20	14	20	20	26
INW-1501F 15-20-15	15	20	15	27
INW-1501F 15-20-25	15	20	25	27
INW-1501F 25-32-20	25	32	20	39
INW-1501F 25-32-25	25	32	25	39
INW-1501F 25-32-30	25	32	30	39
INW-1501F 25-35-16	25	35	16	45
INW-1501F 25-35-25	25	35	25	45
INW-1501F 30-38-20	30	38	20	46
INW-1501F 30-38-25	30	38	25	46
INW-1501F 30-38-30	30	38	30	46
INW-1501F 30-40-20	30	40	20	50
INW-1501F 30-40-30	30	40	30	50
INW-1501F 35-45-20	35	45	20	55
INW-1501F 35-45-25	35	45	25	55
INW-1501F 35-45-35	35	45	35	55
INW-1501F 35-45-40	35	45	40	55
INW-1501F 40-50-25	40	50	25	60
INW-1501F 40-50-30	40	50	30	60
INW-1501F 40-50-40	40	50	40	60
INW-1501F 40-50-40	40	50	40	60
INW-1501F 40-50-50	40	50	50	60
INW-1501F 45-55-30	45	55	30	65
INW-1501F 60-75-35	60	75	35	85
INW-1501F 60-75-60	60	75	60	85
INW-1501F 70-85-60	70	85	60	95
INW-1501F 80-95-70	80	95	70	105
INW-1501F 90-110-50	90	110	50	120
INW-1501F 100-120-80	100	120	80	130
