INW-10WL Dry Bushing With Tin Outside DP4 Bearing Fibres And PTFE Lined
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN 1494 | Material: | Steel+Bronze +PTFE |
| Type: | With Split | Technical: | Dry Bushing |
| Highlight: | composite bearing,compound bearings |
||

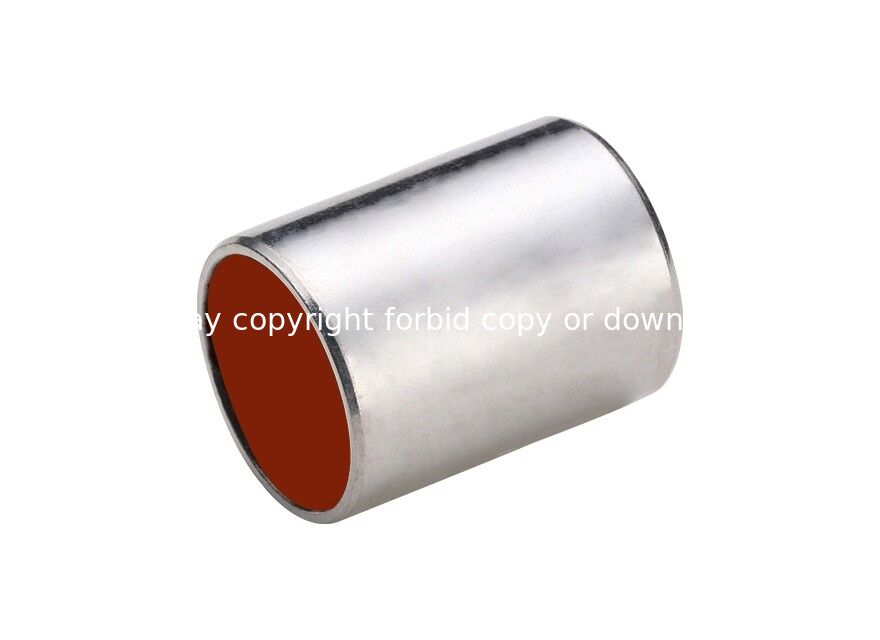

INW-10WL Dry Bushing With Tin Outside DP4 Bearing Fibres And PTFE Lined
INW-10WL Dry bushing with Tin outside DP4 bearing, fibres and PTFE lined, steel backing, self lubricating dry bush
Key Features
- Suitable for dry running applications
- Low coefficient of friction for improved performance
- Reduced wear and excellent sliding characteristics
- Transfer film protects mating metal surfaces
- Compatible with both rotating and oscillating movements
- High chemical resistance
- Low water absorption and minimal swelling
- Enhanced friction and wear resistance over CSB-50 range in lubricated operation
Technical Specifications
| Parameter | Value | Condition |
|---|---|---|
| Max. Static Load | 250 N/mm² | - |
| Max. Speed (Dry Running) | 0.08-0.20 m/s | Dry running |
| Very Low Speed Load | 140 N/mm² | Hydrodynamic operation |
| Rotating/Oscillating Load | 60 N/mm² | - |
| Friction Coefficient (Dry) | 2 m/s | Dry operation |
| Hydrodynamic Speed | >2 m/s | Hydrodynamic operation |
| Max. PV (Dry Running) | 3.6 N/mm²·m/s | Short-term operation |
| Continuous Operation PV | 1.8 N/mm²·m/s | Continuous operation |
| Temperature Range | -195℃ to +280℃ | - |
| Thermal Conductivity | 42 W/(m·K) | - |
| Coefficient of Thermal Expansion | 11×10⁻⁶/K | - |
Multi-Layer Structure
1. PTFE/Fibre mixture (0.01-0.03mm thickness) - Contact surface for rotating shaft that creates a solid lubricant film to coat and protect the shaft
2. Sintered bronze powder (0.20-0.35mm thickness) - Thermally fused copper powder layer that anchors the PTFE layer and conducts heat away from bearing surfaces
3. Low-carbon steel backing - Provides exceptional stability, load carrying capacity, and superior heat dissipation characteristics
Typical Applications
- Automotive: Tractors, combines, crop sprayers, earth-movers, graders, construction equipment, power steering cylinders, steering gear thrust washers, disc brakes, calipers, pistons, shock absorbers, governor linkage, windshield wiper motors, tilt gear assemblies
- Business Machines: Photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers, peripheral equipment, automatic printing devices, mail processing machinery
- Hydraulics & Valves: Gear pumps, rotary pumps, water pumps, axial piston pumps, ball valves, butterfly valves, poppet steam valves, valve trunnions
- Home Appliances: Tape recorders, refrigerators, air conditioners, vacuum cleaners, polishers, sewing machines, ovens, dishwashers, washing machines
- Additional Applications: Materials handling equipment, marine engines, packaging machinery, textile equipment, industrial tools
