High Performance Casting Alloy Bronze CuZn35Al2Mn2Fe1 Oil Groove Inner Surface Flange Type
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Automobile Application | Size: | Standard |
|---|---|---|---|
| Standard: | JIS | Oil Groove: | Sprial Oil Groove |
| Material: | CuZn35Al2Mn2Fe1 | Type: | Flange |
| Highlight: | cast bronze sleeve bearings,cast bronze bearings |
||

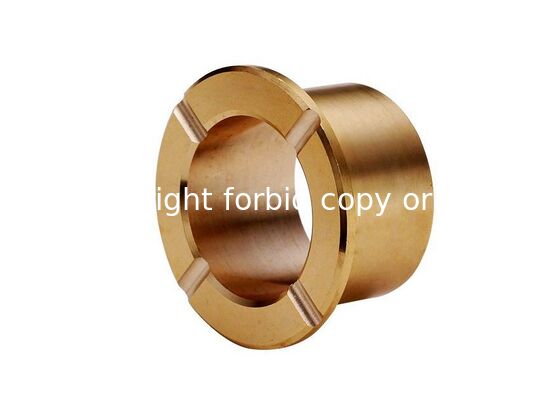

High Performance Casting Alloy Bronze CuZn35Al2Mn2Fe1 Oil Groove Inner Surface Flange Type
High Performance Casting Alloy Bronze CuZn35Al2Mn2Fe1 with Oil Groove inner surface flange Type. This specialized bearing solution offers exceptional mechanical and self-lubricating properties for demanding industrial applications.
Technical Specifications
| Basic Material | CuZn35Al2Mn2Fe1 | Ultimate Dynamic Load | 80N/mm² |
|---|---|---|---|
| Matrix Hardness | HB150~190 | Coefficient of Friction μ | <0.15 |
| Maximum Service Temperature | 250℃ | Maximum Sliding Speed | 2m/s |
Enhanced Performance Characteristics
| Parameter | Value |
|---|---|
| Max. Dynamic Load | 100N/mm² |
| Max. Temperature | 300°C |
| Base Hardness | HB210-270 |
| Friction Coefficient | <0.16 |
| Highest Sliding Speed | Dry: 0.4m/s; Oil: 5m/s |
| Quality Standard | DIN 1494 |
Material Properties
| Property | Value |
|---|---|
| Material | Bronze CuZn25Al6Fe3Mn3 / Cast-iron |
| Density | 8.2g/cm³ |
| Tensile Strength | ≥755N/mm² |
| Anti-compact Tenacity | ≥400~500KJ/m³ |
| Hardness | ≥200HB |
| Max Load Pressure | 100N/mm² |
| Speed Limit | 0.5m/s |
| PV Value Limit | 1.65N/mm².m/s |
| Friction Coefficient (Oil Lubrication) | 0.03 |
| Friction Coefficient (Dry) | 0.16 |
| Working Temperature | -40~+300°C |
Product Overview
JDB-12 Graphite-impregnated aluminum-bronze solid lubrication bearings are manufactured from CuZn35Al2Mn2Fe1 material. These bearings feature moderate surface hardness and provide excellent mechanical and self-lubricating properties with good corrosion-resistance in atmosphere, water, and sea water. The material is easily machinable and primarily used in moderate speed and load applications.
Key Features
- Can operate without oil for extended periods
- High load capacity for demanding applications
- Inner diameter machineable parts available against order
- Excellent thermal conductivity
- Compact minimum overall dimensions
Manufacturing Excellence
INW-66 Casting Alloy Bronze utilizes new and improved copper alloys manufactured in our own foundry. We collaborate closely with university institutes, research facilities, and customers to tailor product performance to specific application requirements.
Available Product Forms
- Flanged bushes
- Thrust washers
- Sliding plates
We provide comprehensive datasheets with detailed information about material characteristics and design specifications.
