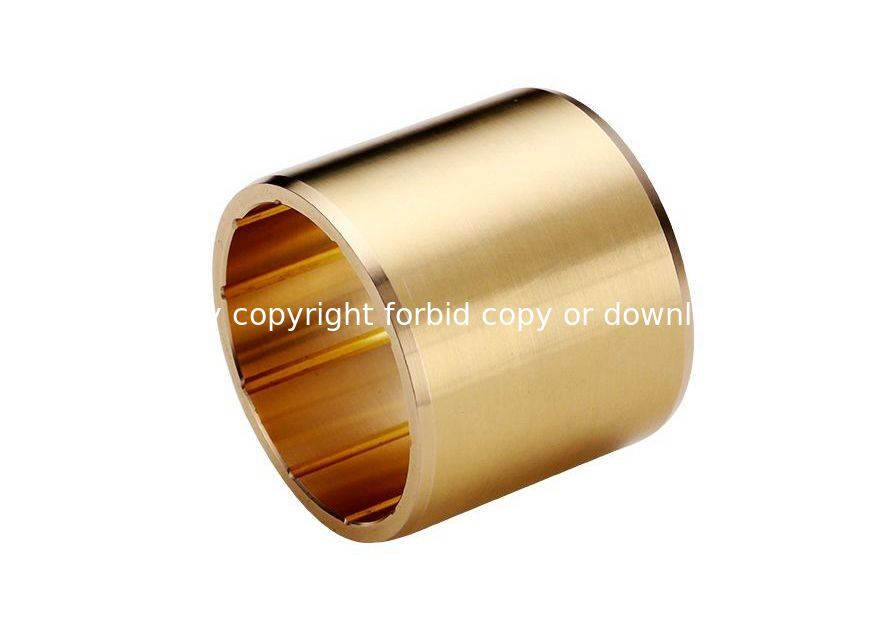

Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Automobile Application | Size: | Standard |
|---|---|---|---|
| Standard: | JIS | Oil Groove: | Straight Oil Groove |
| Material: | CuAl10Fe5Ni5 | Type: | Straight |
| Highlight: | cast bronze sleeve bearings,small brass bushings |
||
Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based
Copper-based alloy bushings with aluminum as principal element, featuring iron and nickel additives. This extremely hard and tough material offers high static and dynamic resistance, excellent sea water, corrosion and erosion resistance, and good performance at high temperatures.
Technical Specifications
Standards & Classification
EN 1982: CC333G
CuAl10Fe5Ni5-C
ASTM B505 C95500 (International Equivalent)
CuAl10Fe5Ni5-C
ASTM B505 C95500 (International Equivalent)
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Al | 8.5 | 10.5 |
| Cu | 76.0 | 83.0 |
| Fe | 4.0 | 5.5 |
| Mn | 3.0 | |
| Ni | 4.0 | 6.0 |
| Bi | 0.01 | |
| Cr | 0.05 | |
| Mg | 0.05 | |
| Pb | 0.03 | |
| Si | 0.01 | |
| Sn | 0.01 | |
| Zn | 0.50 |
Mechanical Properties (Minimum Values)
| Property | Continuous (GC) | Centrifugal (GZ) |
|---|---|---|
| Tensile Strength Rm (MPa) | 650 | 650 |
| Yield Point 0.2% Rp0.2 (MPa) | 280 | 280 |
| Elongation 5D A (%) | 13 | 13 |
| HBW (10-1000) | 150 | 150 |
Physical Properties
| Density (kg/dm³) | 7.6 |
| Specific Heat (j/g·k) | 0.418 |
| Thermal Expansion (10⁻⁶ k) | 17-19 |
| Thermal Conductivity (W/m·ºk) | 60 |
| Electrical Conductivity (m/Ohm·mm²) | 4-6 |
Manufacturing & Applications
INW-62 Casting Alloy Bronze applied with new and improved copper alloys manufactured in our own foundry represents a key foundation of our company's success. We collaborate closely with university institutes, research institutions, and customers to tailor product performance to specific application requirements.
Product Variants
- Flanged bushes
- Thrust washers
- Sliding plates
We provide comprehensive datasheets with detailed information about material characteristics and design specifications.
