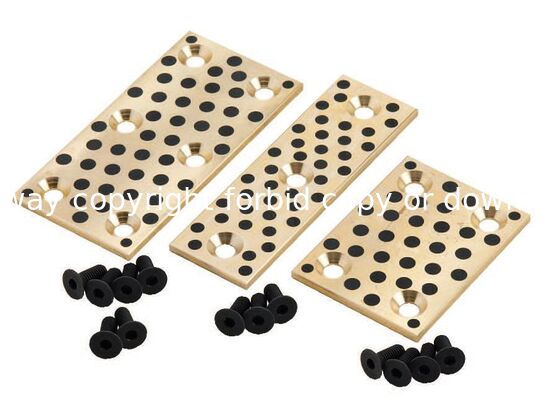

Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 5mm |
|---|---|---|---|
| Screw: | 2 Holes Or 4 Holes | Feature: | OEM Production,Long Life,oil Free |
| Lubrication: | Oil Free,Oil-free Self-lubricated | Standard: | JIS |
| Highlight: | 5mm self lubricating bronze bushings,Copper Alloy Self Lube Bushings,Copper Alloy Self Lubricating Bearings |
||
Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2
Product Features
- Excellent friction resistance and self-lubrication properties prevent scoring and seizure under harsh conditions
- Maintains superior performance even under high load and low rotating speed applications
- Provides exceptional wear resistance in applications where oil film formation is difficult due to reciprocating, rocking movements, and frequent starts/stops
Product Operation
- Delivers high performance under high-load and low-speed operating conditions
- Demonstrates superior wear resistance in applications with minimal oil film production such as reciprocating motions, oscillation, and frequent starts/stops
Product Application
- High-performance operation under high-load and low-speed conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Serviceable without requiring additional lubrication
Wear Plate Specifications
| Base Metal | Oilless Type | Thickness | Code No. | Features |
|---|---|---|---|---|
| FC250 | Graphite | 20 | SESF | Excellent sliding performance at low load and medium speed |
| Graphite | 20 | SESFT | Excellent sliding performance at low load and medium speed | |
| SS400 | Copper Powder sintering | 20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| Copper Powder sintering | 20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited | |
| S45C | Graphite | 10 | TWX | Excellent sliding performance |
| Graphite | 10 | TWXT | Excellent sliding performance | |
| Copper alloy | Graphite | 20 | SESW | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops |
| Graphite | 20 | SESWT | Excellent in load resistance and wear resistance. Excellent sliding performance at high load and low speed. Good performance is shown in reciprocating and frequent starts and stops | |
| Graphite | 10 | TWP | Excellent in load resistance and wear resistance | |
| Graphite | 5 | UWP | Excellent in load resistance and wear resistance | |
| Steel (S45C) | Graphite | 20 | FRP | Surface hardness HRC40 or more, excellent in wear resistance |
| Steel (SKS3) | Graphite | 20 | TSP | Surface hardness HRC58 or more, greatly excellent in wear resistance |
