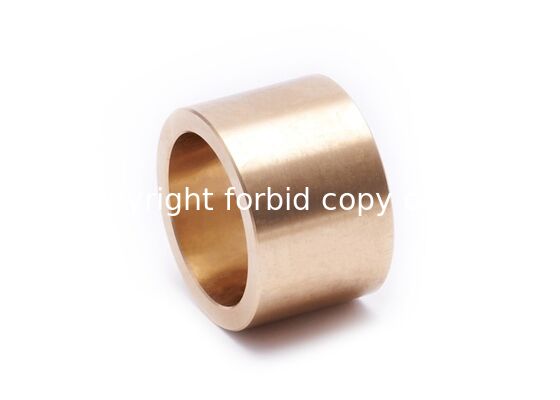

INW15-02 Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Maintenance Free Bushing | Material: | CuSn10 |
|---|---|---|---|
| Lubricating: | Lubricated | Type: | Flange |
| Size: | Customized | Structure: | Powder Metallurgy |
| Highlight: | Powder Metallurgy Bronze Sintered Bearing,CuSn10 Bronze Sintered Bearing,Sleeve Type Bronze Sintered Bearing |
||
INW15-02 Oil Sintered Bronze Bearing
High-performance CuSn10 sintered bronze bearing manufactured using advanced powder metallurgy technology for superior durability and precision.
Product Overview
The INW15-02 sintered bronze bearing is produced through high-pressure pressing and high-temperature sintering processes, followed by oil impregnation for optimal lubrication. Designed for medium-speed, low-load applications, this cost-effective bearing offers high dimensional precision and can operate without oil for short periods.
Applications: Miniature electrical components, home appliances, power tools, textile machinery, chemical industry equipment, automotive systems, and office equipment.
Material Features
Manufactured from bronze or iron powder using high-pressure molding and high-temperature sintering processes, followed by vacuum oil impregnation. Ideal for demanding applications across multiple industries.
- High-pressure pressed bronze/iron powder construction
- High-temperature sintering process
- Vacuum oil impregnation for superior lubrication
- Excellent dimensional precision
- Cost-effective solution for various applications
Technical Specifications
| Parameter | Unit | Bronze (CuSn10) | Iron |
|---|---|---|---|
| Material Composition | 90% Cu, 10% Sn | 99.9% Fe | |
| Density | g/cm³ | 6.4-6.8 | 5.7-5.9 |
| Static Load | N/mm² | - | 500 |
| Maximum Linear Speed | m/s | 7 | 5 |
| Oil Impregnation Volume | % | 22 | 22 |
| Hardness | HRB | 35 | - |
| Friction Coefficient | μ | 0.03 | 0.025 |
| Traction Resistance | MPa | 10-20 | 18-26 |
| Elongation | % | - | 2-4 |
| Operating Temperature Range | °C | -20 to +120 | -20 to +120 |
