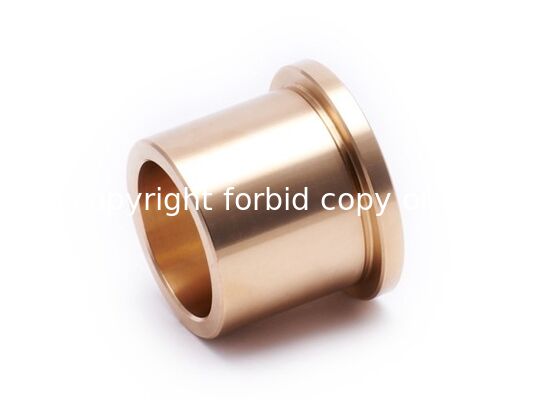

INW15-02F Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Maintenance Free Bushing | Material: | CuSn10 |
|---|---|---|---|
| Lubricating: | Lubricated | Type: | Flange |
| Size: | Customized | Structure: | Powder Metallurgy |
| Highlight: | Sleeve Type Sintered Metal Bearings,CuSn10 Sintered Metal Bearings,Lubricated Sintered Bronze Bearing |
||
INW15-02F Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type
Product Overview
INW-1501 sintered bronze bearing is manufactured using bronze powder pressed under high pressure and sintered at high temperatures, then oil-impregnated for enhanced lubrication. Suitable for medium speed and low load applications, these bearings can operate without oil for short periods while offering cost-effectiveness and high dimensional precision.
Applications
- Mini electrical components
- Home appliances
- Electrical tools
- Textile machinery
- Chemical industry equipment
- Automotive industry
- Office equipment
Manufacturing Process
INW-1501 series bearings are produced from bronze or iron powder, pressed under high pressure using molds, sintered at high temperatures, and vacuum-impregnated with oil for optimal performance.
Technical Specifications
| Parameter | Unit | Bronze (CuSn10) | Iron |
|---|---|---|---|
| Material Composition | 90% Cu, 10% Sn | 99.9% Iron | |
| Density | g/cm³ | 6.4-6.8 | 5.7-5.9 |
| Static Load | N/mm² | 500 | |
| Maximum Linear Speed | m/s | 7 | 5 |
| Oil Impregnation Volume | % | 22 | 22 |
| Hardness | HB | 35 | |
| Friction Coefficient | µ | 0.03 | 0.025 |
| Traction Resistance | MPa | 10-20 | 18-26 |
| Elongation | % | 2-4 | |
| Operating Temperature Range | °C | -20 to +120 | -20 to +120 |
