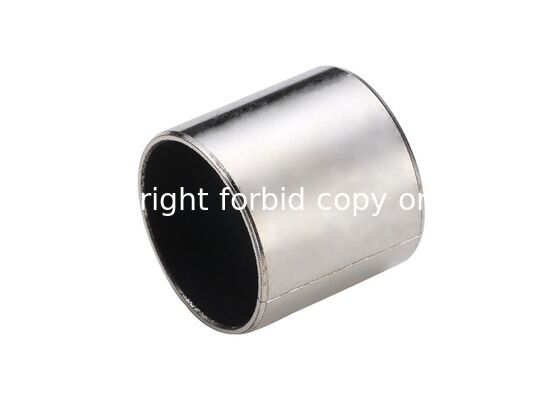

Composite Bearing INW-10 S SF-11S Stainless Steel Backing Bronze PTFE Metric Size
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN 1494 | Material: | Stainless Steel |
| Type: | With Split | Technical: | Dry Bushing |
| Highlight: | composite bearing,compound bearings |
||
Composite Bearing INW-10 S SF-11S Stainless Steel Backing Bronze PTFE Metric Size
Composite Bearing INW-10 S SF-11S featuring stainless steel backing with bronze PTFE lining, designed for metric applications requiring superior performance in demanding environments.
Product Features
- Suitable for dry running applications with low coefficient of friction
- Reduced wear with excellent sliding characteristics
- Transfer film protects mating metal surfaces
- Ideal for both rotating and oscillating movements
- High chemical resistance and low water absorption
- Enhanced friction and wear resistance over standard CSB-50 range
- Widely used in chemical, food, pumping, valves, and ocean industries
Multi-Layer Structure
1. PTFE/Fibre Mixture (0.01-0.03mm)
Creates excellent initial transfer film that coats mating surfaces, forming an oxide-type solid lubricant film.
2. Sintered Bronze Powder (0.20-0.35mm)
Provides maximum thermal conductivity away from bearing surface and serves as reservoir for PTFE-Fibre mixture.
3. Stainless Steel Backing (SUS304, 314, 440)
Offers exceptional stability and heat dissipation in strong acid and alkali environments.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. Static Load | 250 N/mm² | Max. Speed (Dry) | 0.08-0.20 m/s |
| Very Low Speed Load | 140 N/mm² | Hydrodynamic Operation | 0.02-0.08 m/s |
| Rotating/Oscillating Load | 60 N/mm² | Friction Coefficient (Dry) | 2 m/s |
| Max. PV (Dry Running) | 3.6 N/mm²*m/s | Thermal Conductivity | 42 W/(m*K) |
| Continuous Operation PV | 1.8 N/mm²*m/s | Thermal Expansion Coefficient | 11×10⁻⁶/K |
| Temperature Range | -195℃ to +280℃ |
Industry Applications
SBU-S bearings offer oil resistance, acid resistance, and seawater resistance. The lead-free PTFE surface layer makes them particularly suitable for:
- Food machinery and processing equipment
- Alkali flow meters and pump motion elements
- Pharmaceutical manufacturing machines
- Printing machinery and equipment
- Chemical engineering applications
- Marine and ocean industry components
Additional Application Areas
- Automotive: Tractors, construction equipment, power steering cylinders, disc brakes, shock absorbers
- Business Machines: Photocopiers, printers, mail processing equipment
- Hydraulics & Valves: Various pump types, ball valves, butterfly valves
- Home Appliances: Refrigerators, air conditioners, washing machines, sewing machines
