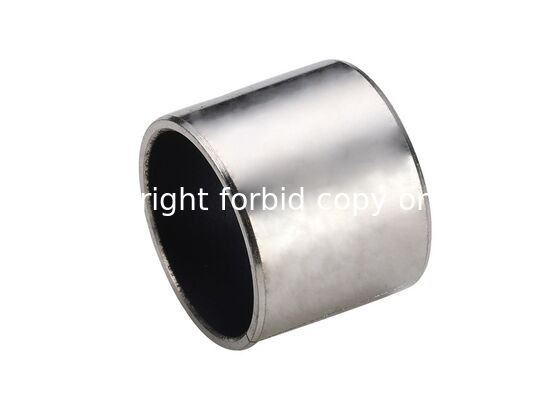

Composite Bearing INW-10 SF-1 DX DU Bushing Steel For Engine Bearing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN 1494 | Material: | Steel+Bronze +PTFE |
| Type: | With Split | Technical: | Dry Bushing |
| Highlight: | composite bearing,compound bearings |
||
Composite Bearing INW-10 SF-1 DX DU Bushing Steel For Engine Bearing
Composite Bearing INW-10 SF-1 DX DU Bushing Steel Bronze Powder PTFE/Fibre
Product Features
INW-10 material is engineered to operate with or without supplemental lubrication, delivering exceptional performance in both conditions. This material offers low friction, minimal wear rate, excellent sliding characteristics, and very low absorption. INW-10 bushings support rotary, linear, and oscillating motion applications.
Material Structure
- PTFE/Fibre Mixture (0.01-0.03mm): Forms the contact surface for rotating shafts. Minute PTFE particles combine with sintered bronze to create a solid lubricant film that coats the shaft surface.
- Sintered Bronze Powder (0.20-0.35mm): A specialized copper powder composition thermally fused to the steel backing. This layer anchors the PTFE surface and conducts thermal buildup away from bearing surfaces.
- Low-Carbon Steel Backing: Provides the structural foundation with exceptional stability, superior load carrying capacity, and excellent heat dissipation characteristics.
Typical Applications
- Automotive: Tractors, combines, crop sprayers, earth-movers, graders, construction equipment, power steering cylinders, steering gear thrust washers, disc brakes, calipers, pistons, shock absorbers, governor linkage, windshield wiper motors, and tilt gear assemblies
- Business Machines: Photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers, peripheral equipment, automatic printing devices, and mail processing machinery
- Hydraulics and Valves: Gear pumps, rotary pumps, water pumps, axial piston pumps, ball valves, butterfly valves, poppet steam valves, and valve trunnions
- Home Appliances: Tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines, plus materials handling, marine engines, packaging, textile equipment, and tools
Technical Specifications
| Load Capacity | 140 N/mm² | Friction Coefficient | 0.03-0.18 |
|---|---|---|---|
| Temperature Range | -195℃ to 280℃ | PV Limit (Dry) | 4.3 N/mm²*m/s |
| Speed Limit | 10 m/s | PV Limit (Oil) | 60 N/mm²*m/s |
