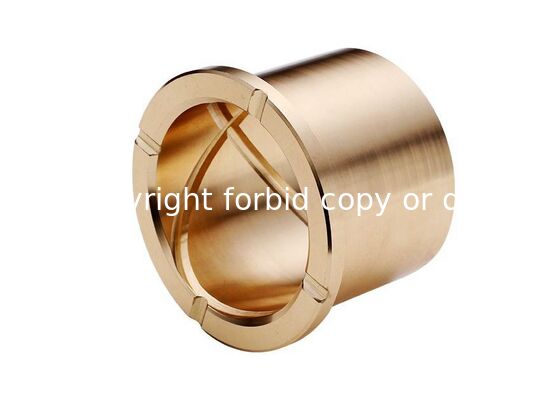

CuZn25Al6Fe3Mn3 Cast Bronze Bushings , Brass Bushing Material INW-201
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Automobile Application | Size: | Standard |
|---|---|---|---|
| Standard: | JIS | Oil Groove: | Straight Oil Groove |
| Material: | CuAl10Fe5Ni5 | Type: | Straight |
| Highlight: | cast bronze sleeve bearings,small brass bushings |
||

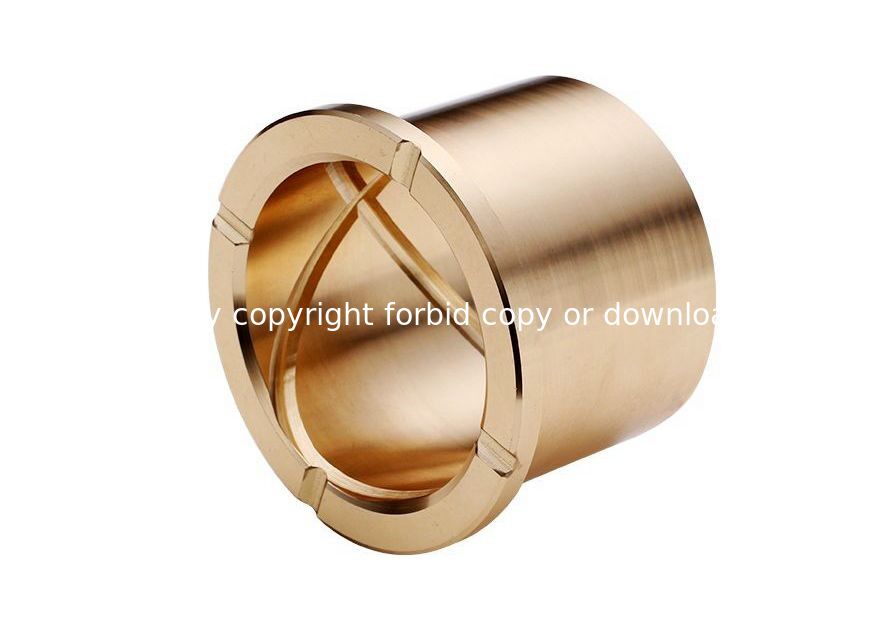

CuZn25Al6Fe3Mn3 Cast Bronze Bushings, Brass Bushing Material INW-201
High-performance cast bronze bushings manufactured from specialized copper alloys for demanding industrial applications.
Technical Specifications
| Material | Bronze CuZn25Al6Fe3Mn3 |
|---|---|
| Iron | Cast-iron |
| Density | 8.2 g/cm³ |
| Tensile Strength | ≥755 N/mm² |
| Anti-compact Tenacity | ≥400-500 KJ/m³ |
| Hardness | ≥200 HB |
| Max Load Pressure | 100 N/mm² |
| Speed Limit | 0.5 m/s |
| PV Value Limit | 1.65 N/mm²·m/s |
| Friction Coefficient | Oil Lubrication: 0.03 Dry Friction: 0.16 |
| Working Temperature | -40 to +300°C |
Performance Characteristics
These cast bronze bushings feature a strong bronze base metal with embedded solid lubricants. The base metal provides exceptional load-bearing capacity while the solid lubricants enable self-lubrication. This combination delivers outstanding performance without pre-lubrication under extreme temperature conditions with low-speed operation.
Key Features
- Extended operation without oil lubrication
- High load capacity for demanding applications
- Custom inner diameter machining available upon request
- Superior thermal conductivity
- Compact design with minimal overall dimensions
Manufacturing Excellence
Our INW-66 Casting Alloy Bronze utilizes advanced copper alloys manufactured in our proprietary foundry. We collaborate with university institutes, research facilities, and customers to tailor product performance to specific application requirements.
Available Configurations
- Flanged bushes
- Thrust washers
- Sliding plates
Comprehensive datasheets with detailed material characteristics and design information are available upon request.
