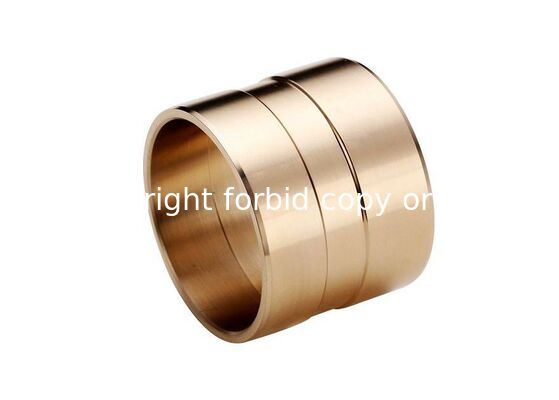

CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type

CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type
CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type

Large Image :  CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: INWAY
Certification: ISO9001
Model Number: INW-201
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 5 work days or based on quantity
Payment Terms: L/C, T/T
Supply Ability: 100 tons/month
Contact Now
Detailed Product Description
Application: Automobile Application Size: Standard
Standard: JIS Oil Groove: Round Oil Groove
Material: CuAl10Fe3 Type: Straight
Highlight:

cast bronze sleeve bearings

,

small brass bushings

CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type
High-performance aluminum bronze bushings designed for medium-duty applications requiring exceptional wear resistance, fatigue strength, and high ductility for cold working operations.
Technical Specifications
Material: CuAl10Fe3 (UNS C62300) Aluminum Bronze Alloy
Material Composition
Element Percentage
Aluminum (Al) 8.50-10.00%
Iron (Fe) 2.00-4.00%
Manganese (Mn) 0.50% Max.
Nickel (Ni) 1.00% Max.
Silicon (Si) 0.25% Max.
Tin (Sn) 0.60% Max.
Copper (Cu) Balance
Note: Copper plus additions equal 99.50% minimum.
Physical Properties
Property Value
Specific Gravity 7.70 g/cm³
Coefficient of Thermal Expansion 16.20 × 10⁻⁶/°C (20-300°C)
Electrical Conductivity 12% IACS @ 68°F
Thermal Conductivity 31.0 Btu·ft/(hr·ft²·°F) @ 68°F
Modulus of Elasticity (Tension) 17,000 ksi
Applications
Industrial Applications:
  • Cams and Bushings
  • Bearing Retainer Cages
  • Gears and Bearing Races
  • Valve Stems and Guides
  • Valve Seats and Worm Gears
  • Sleeve Bearings and Pump Rods
Fasteners:
  • Nuts and Bolts
Marine Applications:
  • Marine Hardware Components
Available Products
Standard Forms:
  • Round Bars
  • Flat Bars
  • Square Bars
  • Rectangular Bars
  • Hexagon Bars
Custom Options:
  • Custom Diameters and Sizes
  • Random Mill Lengths
  • Custom Shapes Available Upon Request
Product Variants
  • Flanged Bushes
  • Thrust Washers
  • Sliding Plates
Our INW-62 casting alloy bronze is manufactured in our own foundry using advanced copper alloys. We collaborate with university institutes, research centers, and customers to optimize product performance for specific application requirements.
CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type 0 CuAl10Fe3 Cast Bronze Bushings With Oil Groove Outside Surface Sleeve Type 1
Complete technical datasheets with detailed material characteristics and design information are available upon request.
