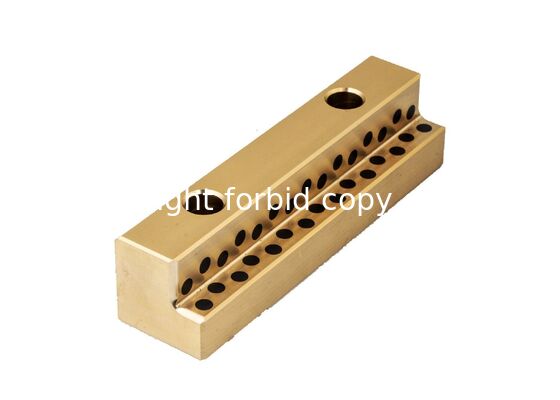

SOL Slide Plate JSL INW L Shape Angled Guide Gib Bronze With Graphite DSTLW

Large Image : SOL Slide Plate JSL INW L Shape Angled Guide Gib Bronze With Graphite DSTLW Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	SOL

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Material:	Steel Sintered With Layer	Application:	Cam Unit
Size:	Customized	Standard:	Sankyo
Type:	Headed Guide Bush	Precision Rating:	High Precision
Highlight:	brass wear plate , self lubricating bushing material

SOL Slide Plate JSL INW L Shape Angled Guide Gib Bronze With Graphite DSTLW

SOL Slide Plate JSL L Shape Angled Guide Gib Bronze With Graphite

INW Bronze with solid lubricant angled guide gib for industrial applications

Product Specifications

Material: Bronze with solid lubricant, oilless lubricating
Execution: Sliding faces ground

Type	Straight	Bushing Material	Graphite Impregnated Brass
I.D. d(mm)	6	O.D. D(mm)	10
Maximum Allowable PV Value(N/mm²•m/s)	1.65	Maximum Allowable Load(N/mm²)	29
Operating Temperature Range(℃)	-40~150	Operating Temperature Range (No Lubrication) Min	-40

Detailed Specifications

Type	W1	W2	T	t1	t2	ℓ1	ℓ2	ℓ3	ℓ4	ℓ5	d	VDI Code	Catalog No.	L
A	18	9	15.5	8.5	6	27.5	97.5	─	─	─	9	─	DSTLW	25 125 132.5 160
	22	11	30.5	15.5	9	97.5	11	32	125	132.5	160	172.5	200
	30	15	50.5	34.5	18	72.5	13.5	45	100	132.5	160
	37	20	55.5	39.5	23	72.5	VDI3357－F－601	55	100	132.5	VDI3357－F－602	160
	50	30	75.5	55.5	35	35	125	17.5	VDI3357－F－611	70	160	165	VDI3357－F－612	200
	B: 125, 215 \| VDI3357－F－613: 250
C: 125, 200, 275, 365 \| VDI3357－F－614: 400
A	63	38	90.5	65.5	45	42.5	117.5	─	─	─	22	VDI3357－F－621	85	160
	157.5 \| VDI3357－F－622: 200
	B: 125, 207.5 \| VDI3357－F－623: 250
	C: 125, 200, 275, 357.5 \| VDI3357－F－624: 400
