Self Lubricating Bushing Material VDI 3357 Steel Overrun Cam Steel Hardness HRC58
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Shape: | Overrun Cam | Application: | Cam Unit |
|---|---|---|---|
| Size: | Customized | Standard: | INW |
| Material: | Steel With Hardness | Technique: | Open Arc Hardfacing / Overlay Welding |
| Highlight: | brass wear plate,self lubricating bushing material |
||

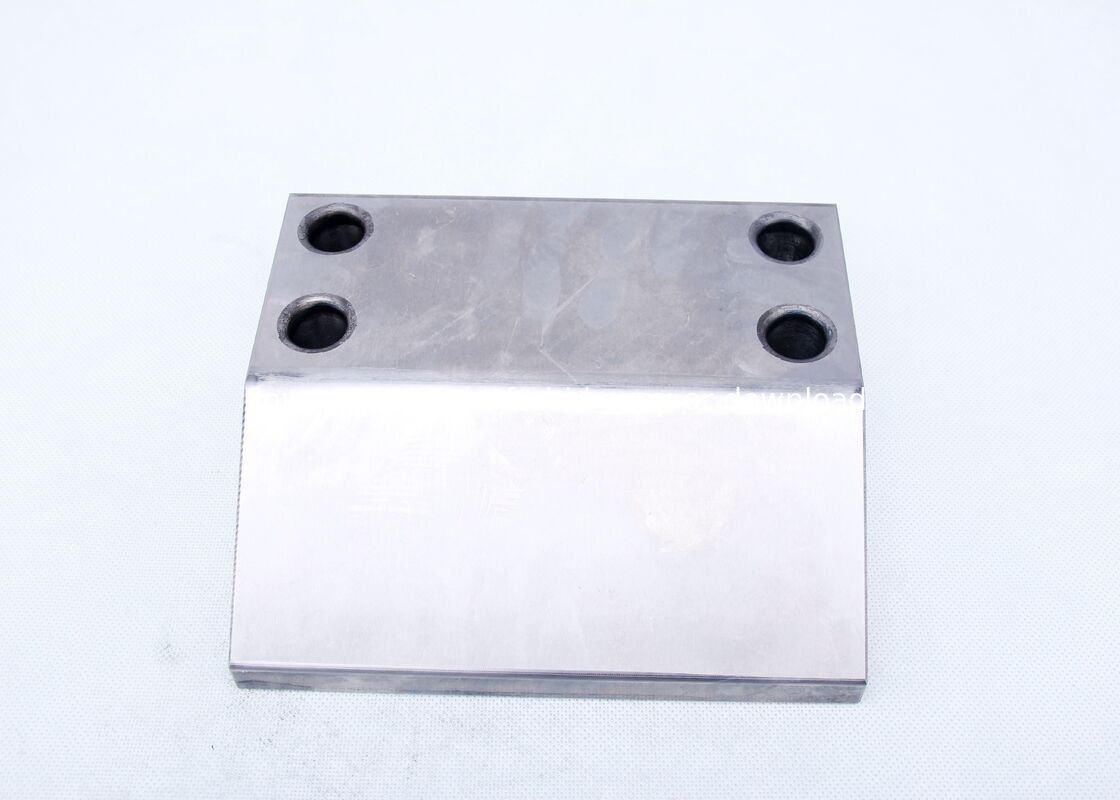

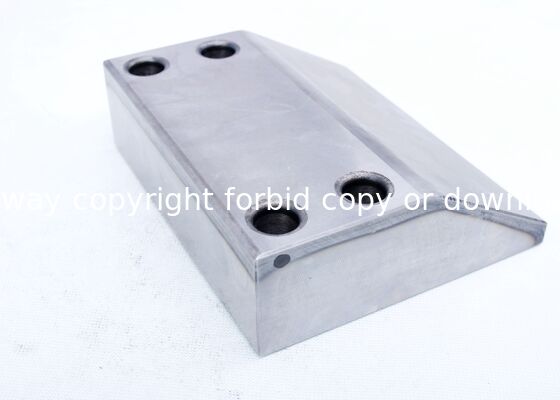

Self Lubricating Bushing Material VDI 3357 Steel Overrun Cam Steel Hardness HRC58
Product Overview
Self Lubricating Bushing Material INW 2960.90 Overrun Cam Steel with HRC58 hardness rating.
Product Features
- Operates without lubrication - eliminates need for lubricating systems, reduces assembly time, prevents oil pollution, maintains clean environment, and lowers costs
- Eliminates oil-application equipment requirements while offering versatile solid lubricant-inlaid bushing designs for specialized applications
- Significantly reduces machinery maintenance costs and oil consumption across various applications
Product Operation
- Serviceable without lubrication requirements
- Apply minimal grease for initial lubrication during die spotting
- Available in various standard sizes for immediate use
Technical Specifications
| θ | ℓ1 | W1 | VDI Code Copper | VDI Code Steel | Catalog No. | L | T | Type | W |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 143.37 | 60 | VDI3357－H－801 | VDI3357－H－841 | HW | HS | |||
| 100 | 170 | 45 | |||||||
| 85 | VDI3357－H－802 | VDI3357－H－842 | 125 | ||||||
| 110 | VDI3357－H－803 | VDI3357－H－843 | 150 | ||||||
| 160 | VDI3357－H－804 | VDI3357－H－844 | 200 | ||||||
| 30 | 127.86 | 60 | VDI3357－H－811 | VDI3357－H－851 | 100 | 150 | 45 | ||
| 60 | VDI3357－H－812 | VDI3357－H－852 | 100 | 170 | 60 | ||||
| 85 | VDI3357－H－813 | VDI3357－H－853 | 125 | 150 | 45 | ||||
| 85 | VDI3357－H－814 | VDI3357－H－854 | 125 | 170 | 60 | ||||
| 110 | VDI3357－H－815 | VDI3357－H－855 | 150 | 150 | 45 | ||||
| 110 | VDI3357－H－816 | VDI3357－H－856 | 150 | 170 | 60 | ||||
| 160 | VDI3357－H－817 | VDI3357－H－857 | 200 | 150 | 45 | ||||
| 160 | VDI3357－H－818 | VDI3357－H－858 | 200 | 170 | 60 |
