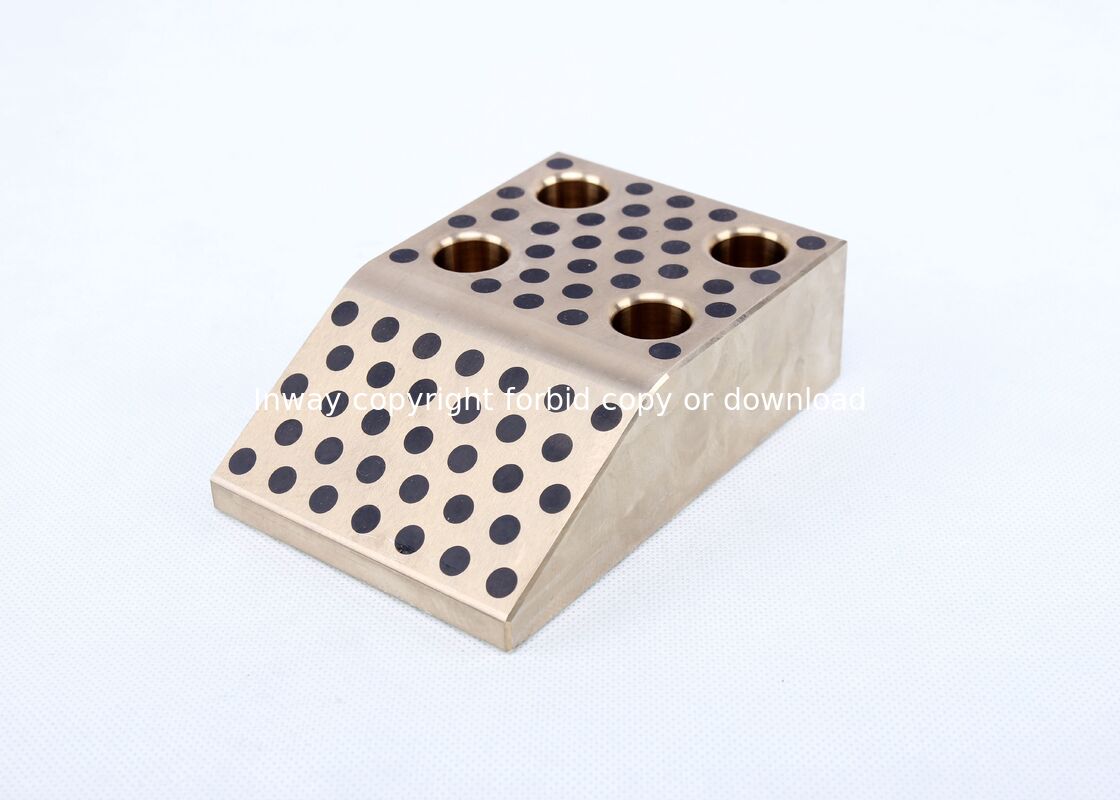

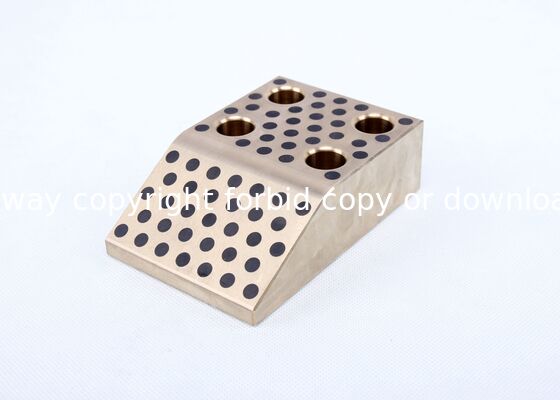

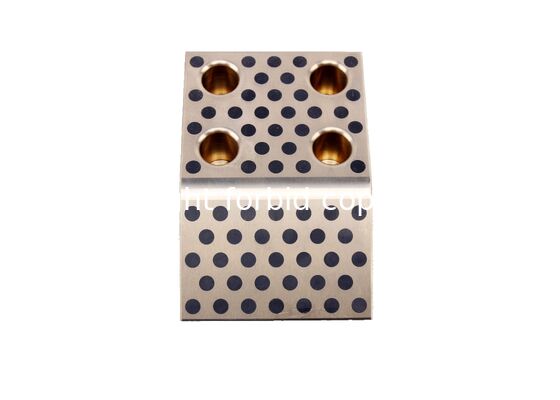

VDI 3357 Self Lubricating Bearing Overrun Cam Bronze Customized Size
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Shape: | Overrun Cam | Application: | Cam Unit |
|---|---|---|---|
| Size: | Customized | Standard: | INW |
| Type: | Cutting Tools | Material: | Bronze With Graphite |
| Highlight: | bronze wear plate,self lubricating bushing material |
||
VDI 3357 Self Lubricating Bearing Overrun Cam Bronze Customized Size
Angular cam units of oilless plates for standard parts of automobile dies and other industrial applications.
Product Features
- Operates without lubrication - eliminates need for lubricating systems, reduces assembly time, prevents oil pollution, maintains clean environment, and lowers costs
- Eliminates oil-putting equipment requirements while offering solid lubricant-inlaid bushings in various shapes to meet specialized application needs
- Reduces machinery maintenance and lubrication costs across wide-ranging applications
Product Operation
- Serviceable without the need for lubrication
- Apply minimal grease for initial lubrication during die spotting
- Available in various standard sizes for diverse applications
Product Application
- Delivers high performance under high-load and low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Operates effectively without requiring lubrication
Product Specifications
| θ | ℓ1 | W1 | VDI Code Copper | VDI Code Steel | Catalog No. | L | T | Type | W |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 143.37 | 60 | VDI3357－H－801 | VDI3357－H－841 | HW | 100 | 170 | 45 | 85 |
| VDI3357－H－802 | VDI3357－H－842 | HS | 125 | 110 | |||||
| VDI3357－H－803 | VDI3357－H－843 | 150 | 160 | ||||||
| VDI3357－H－804 | VDI3357－H－844 | 200 | |||||||
| 30 | 127.86 | 60 | VDI3357－H－811 | VDI3357－H－851 | 100 | 150 | 45 | 60 | |
| VDI3357－H－812 | VDI3357－H－852 | 100 | 170 | 60 | 85 | ||||
| VDI3357－H－813 | VDI3357－H－853 | 125 | 150 | 45 | 85 | ||||
| VDI3357－H－814 | VDI3357－H－854 | 125 | 170 | 60 | 110 | ||||
| VDI3357－H－815 | VDI3357－H－855 | 150 | 150 | 45 | 110 | ||||
| VDI3357－H－816 | VDI3357－H－856 | 150 | 170 | 60 | 160 | ||||
| VDI3357－H－817 | VDI3357－H－857 | 200 | 150 | 45 | 160 | ||||
| VDI3357－H－818 | VDI3357－H－858 | 200 | 170 | 60 |
