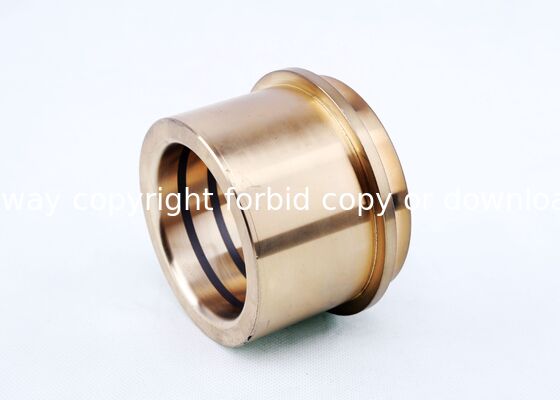

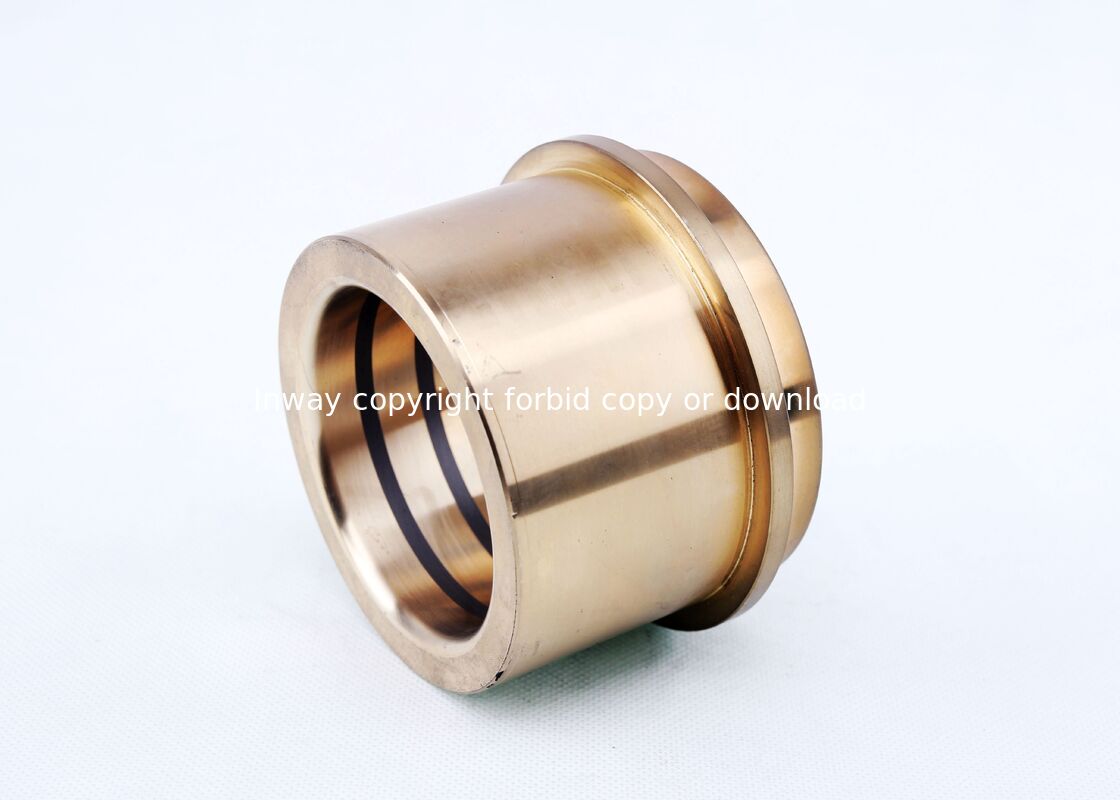

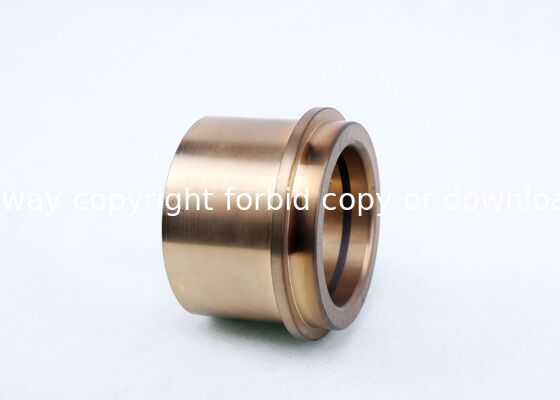

European Headed Guide Bush ECO-LINE Bronze With Solid Lubricant Rings ISO9448-6
European standard headed guide bush "ECO-LINE" manufactured from bronze with solid lubricant rings, compliant with ISO 9448-6 specifications.
Product Specifications
- Material: Bronze with solid lubricant, oilless lubricating
- Execution: Contact surface with solid lubricant rings
- Outside Diameter: Precision ground
- Attachment: 3 screw clamps (4 screw clamps from ∅ d1 = 38mm)
- Included Components: Screw clamps with socket cap screw DIN 6912, Head ∅ 13
Technical Dimensions
| d1 | d3 | d4 | d5 | d6 | d7 | a | a1 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 32 | 32 | 40 | 52 | 64.7 | 20.7 | 30 | 35 | 23 | 12 |
| 20 | 40 | 40 | 48 | 60 | 72.7 | 22.65 | 33.4 | 35 | 23 | 12 |
| 24 | 48 | 48 | 56 | 67 | 79.7 | 24.4 | 36.4 | 42 | 30 | 12 |
| 25 | 58 | 58 | 66 | 77 | 89.7 | 35.3 | 35.3 | 52 | 37 | 15 |
| 30 | 70 | 70 | 80 | 91 | 103.7 | 40.2 | 40.2 | 65 | 47 | 18 |
| 32 | 85 | 85 | 95 | 106 | 118.7 | 45.5 | 45.5 | 80 | 60 | 20 |
| 38 | 105 | 105 | 118 | 129 | 141 | 54.4 | 54.4 | 80 | 60 | 20 |
Product Reference: INW 81.75 - Headed guide bush "ECO-LINE", Bronze with solid lubricant rings, ISO 9448-6
Additional Information: For detailed notes on sliding type guides, matching guide combinations, assembly guidelines, dimensional requirements and tolerances, please refer to the beginning and end of chapter D in our technical documentation.
