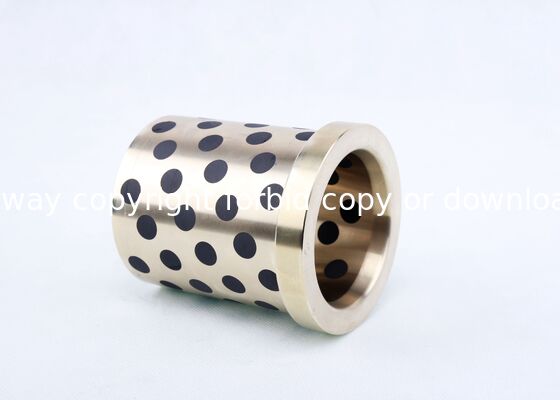

PSA Standard ERGB CNOMO Solid Lubricant Bearings Guide Bushing European Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Low Resistance,Long Operating Life,Maintenance,High Precision | Material: | Bronze With Graphite |
|---|---|---|---|
| Type: | Flange | Size: | Standard Size,Customizable |
| Product Name: | Brass Bush,Sleeve Bearing | Standard: | PSA |
| Highlight: | PSA Standard Solid Lube Bearings,Bronze Bushing Lubrication Low Resistance,European Standard Solid Lubricant Bearings |
||

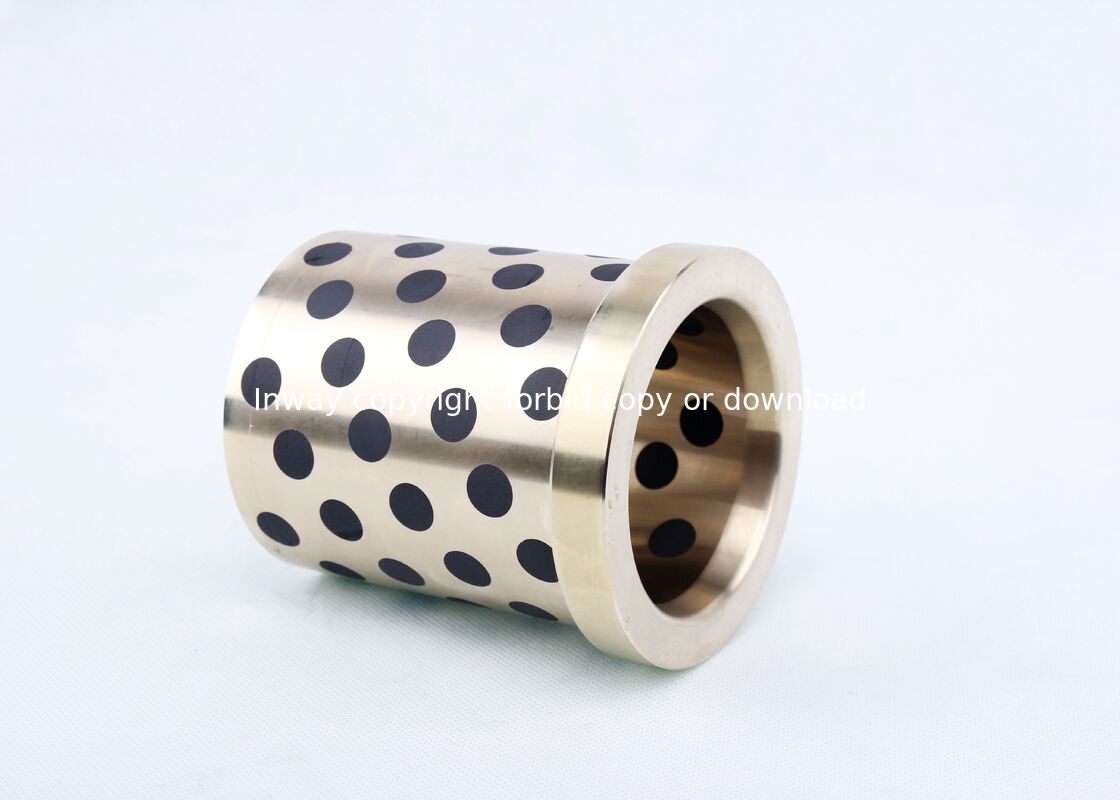

PSA Standard ERGB CNOMO Solid Lubricant Bearings Guide Bushing
European Standard guide bush with collar, manufactured from bronze with solid lubricant for oilless lubrication applications.
Note: Matching guide combinations available - refer to selection matrix at the beginning of chapter D. Assembly guidelines, dimensional requirements and tolerances provided at the end of chapter D.
Fixing
Screw clamps with SC (to be ordered separately)
Important: These bushes are designed for axial motion applications only. Note that press fitment reduces the inside bush diameter.
Technical Specifications
| Type | Straight | Bushing Material | Graphite Impregnated Brass |
|---|---|---|---|
| I.D. d(mm) | 6 | O.D. D(mm) | 10 |
| Overall Length L(mm) | 10 | Maximum Allowable PV Value Range (N/mm²•m/s) | 1.1~2.0 |
| Maximum Allowable PV Value (N/mm²•m/s) | 1.65 | Maximum Allowable Load (N/mm²) | 29 |
| Maximum Allowable Velocity (m/s) | 0.5 | Mounting Hole Fits | H7 |
| Operating Temperature Range (°C) | -40~150 | Operating Temperature Range (No Lubrication) Min | -40 |
Product Advantages
- Total Self-Lubricating: No oil or grease required. Ideal for applications where lubrication is difficult, expensive to implement, or where grease/oil cannot be used. Excellent performance even under high loads at low speeds.
- Excellent Wear Resistance: Superior performance under severe working conditions including heavy loads, low velocity, reciprocating, oscillating and intermittent motions where oil film formation is challenging.
- Low Coefficient of Friction: 0.04 to 0.2 typical. Specially embedded solid lubricants provide effective friction reduction.
- Wide Operating Temperature Ranges: -40 °C to +300 °C. Reliable performance across extreme temperature conditions.
- Corrosion and Chemical Resistance: Performance remains unaffected by water and caustic chemicals.
- Designed to Exceed Your Requirements: High precision manufacturing with close tolerances for superior performance.
- Cost Competitive: Reduced maintenance, replacement, and downtime costs due to exceptional service life compared to similar self-lubricating products.
