DIN9834 Solid Lubricant Bearings Guide Bushing European Standard SO#50SP2
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Low Resistance,Long Operating Life,Maintenance,High Precision | Material: | Bronze With Graphite |
|---|---|---|---|
| Type: | Flange | Size: | Standard Size,Customizable |
| Product Name: | Brass Bush,Sleeve Bearing | Lubricating: | Oilless |
| Highlight: | solid oil bearings,Customizable bronze bushing lubrication,DIN9834 Solid Lubricant Bearings |
||

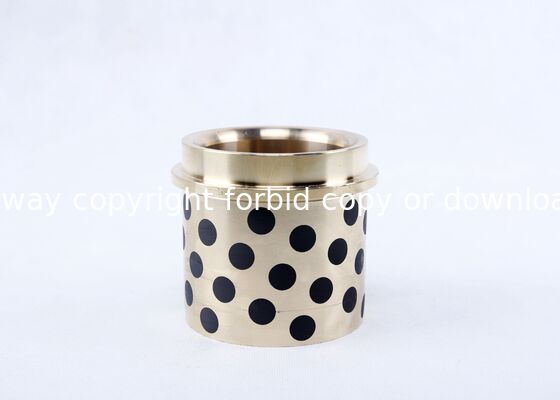

DIN9834 Solid Lubricant Bearings Guide Bushing European Standard SO#50SP2
Product Overview
DIN9834 / ISO9448 guide bushing, European standard, SO#50SP2 with graphite solid lubricant. Available in huge stocks for immediate delivery.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Straight |
| Bushing Material | Graphite Impregnated Brass |
| I.D. d(mm) | 6 |
| O.D. D(mm) | 10 |
| Overall Length L(mm) | 10 |
| Maximum Allowable PV Value Range (N/mm²•m/s) | 1.1~2.0 |
| Maximum Allowable PV Value (N/mm²•m/s) | 1.65 |
| Maximum Allowable Load (N/mm²) | 29 |
| Maximum Allowable Velocity (m/s) | 0.5 |
| Mounting Hole Fits | H7 |
| Operating Temperature Range (°C) | -40~150 |
| Operating Temperature Range (No Lubrication) Min (°C) | -40 |
Product Advantages
- Total Self-Lubricating: No oil or grease required. Excellent lubrication even under high loads at low speeds.
- Excellent Wear Resistance: Performs well under severe conditions including heavy load, low velocity, and intermittent motions.
- Low Coefficient of Friction: 0.04 to 0.2 typical with specially embedded solid lubricants.
- Wide Operating Temperature Ranges: -40°C to +300°C with superior performance at extreme temperatures.
- Corrosion and Chemical Resistance: Unaffected by water and caustic chemicals.
- High Precision Design: Manufactured with close tolerances to exceed requirements.
- Cost Competitive: Reduces maintenance, replacement, and downtime costs with exceptional service life.
Catalog Reference
| Catalog No. (Type) | d | D | L | t r X (DIN 509) |
|---|---|---|---|---|
| 9834-025 (11) | ||||
| 9834-032 (12) | ||||
| 9834-040 (13) | ||||
| 9834-050 (14) | ||||
| 9834-063 (15) | ||||
| 9834-080 (16) | ||||
| 9834-100 (17) | ||||
| 9834-125 (18) | ||||
| 9834-160 (20) |
