SEGBL SEGBLH LONG Type Ejector Guide Bushing SO#50SP2 Bronze With Graphite
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Low Resistance,Long Operating Life,Maintenance,High Precision | Material: | Bronze With Graphite |
|---|---|---|---|
| Standard: | SANKYO | Type: | FLANGE |
| Application: | Bearings | Product Material: | Bronze Alloy |
| Highlight: | Bronze Solid Lube Bearings,Bronze Alloy Solid Oil Bearings,Bronze Guide Bushing |
||

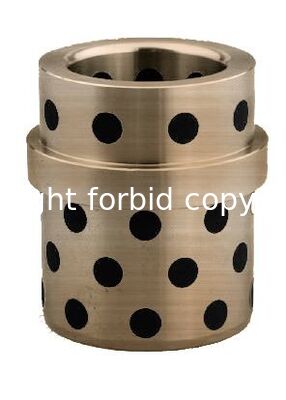

SEGBL SEGBLH LONG Type Ejector Guide Bushing SO#50SP2 Bronze With Graphite
SEGB/SEGBK guide bushings are engineered with highly wear-resistant copper cast alloy featuring evenly distributed solid lubricant plugs on sliding surfaces. The high-strength copper alloy provides exceptional load-bearing capacity, while the solid lubricant forms a low-friction film during operation.
Under technical dry running conditions, the bearing surface is designed with a thick running-in film that enables the solid lubricant to transfer to the counter material upon initial contact.
Available Types:
- SEGBL - Flange thickness 4 mm Type
- SEGBLH - Flange thickness 8 mm Type
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Bronze | CuZn25Al6Fe3Mn3 + Graphite |
| Iron | Cast-iron + Graphite |
| Density | 8.2g/cm³ |
| Tensile Strength | ≥755N/mm² |
| Anti-compact Tenacity | ≥400-500KJ/m³ |
| Hardness | ≥200HB |
| Max Load Pressure | 100N/mm² |
| Speed Limit | 0.5m/s |
| PV Value Limit | 1.65N/mm²·m/s |
| Friction Coefficient (Oil Lubrication) | 0.03 |
| Friction Coefficient (Dry) | 0.16 |
| Working Temperature | -40 to +300°C |
Types and Sizes
