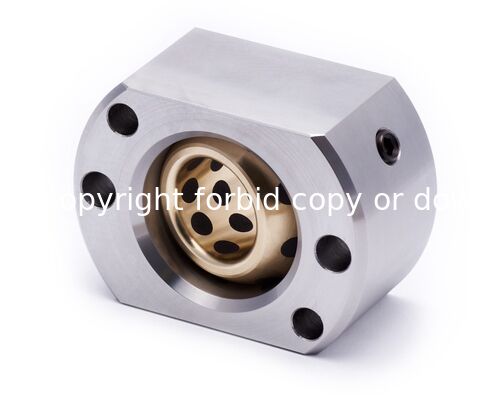

Spherical Guide Bushing Set For Inclined Pin Strong Type MTGHL (Left Handed) MTGHR(Right Handed)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Injection Mold | Size: | Strong |
|---|---|---|---|
| Standard: | Sankyo | Type: | Adjusting Type |
| Material: | Steel With Hardness | Shaping Mode: | Die Casting |
| Highlight: | Left Handed Guide Bushing Set,Strong Type Guide Bushing Set,Guide Bushing Set Spherical |
||
Spherical Guide Bushing Set For Inclined Pin Strong Type
Available in left-handed (MTGHL) and right-handed (MTGHR) configurations, these oil-free slide units are designed for loose core applications in industrial machinery.
Material Specifications
- Inner wheel: Copper Alloy Oilless Type
- Outer wheel: S45C-H (equivalent to C45/AISI 1045)
- Operating temperature range: 0°C to 170°C
Dimensional Specifications
| L | W | T | H | Ha | B | Mounting Holes | Dowel Pin Hole | Catalog No. | d | Ma | P | h | e | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85 | 57 | 42 | 21 | 33 | 64 | 11 | 42 | 50 | 25 | ||||||
| 94 | 65 | 48 | 24 | 37 | 72 | 48 | 55 | 30 | |||||||
| 98 | 72 | 54 | 27 | 40 | M10 | 78 | 13 | 8 | 52 | 60 | MTGHL | 35 | |||
| 106 | 77 | 58 | 29 | 44 | 84 | 12 | 55 | 65 | MTGHR | 40 | |||||
| 124 | 88 | 66 | 33 | 48 | M12 | 102 | 18 | 10 | 65 | 78 | 50 |
Features of Oil-free Slide Units for Loose Core
- Refer to the dimensional table for inclined pin edge cutout dimensions and screw size (PM)
- Counterbore on inclined pin holder accommodates socket head cap screw with spring washer
- Two mounting options: screwing into ejector plate or screwing into unit
- For unit mounting, use socket head cap screw corresponding to BM dimensions
- For plate mounting, select one rank below corresponding BM (M6 when BM is M8)
- Apply grease prior to mounting for wear protection during initial running-in
- Recommended to use supporting bushing for long stroke applications
Product Illustration
