Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR(Right Handed)

All Products
Self Lubricating Bearings (31)
Solid Lubricant Bearings (18)
Sintered Metal Bearings (15)
Stamping Die Components (11)
Injection Mold Components (16)
Self Lube Wear Plates (12)
Hardened Steel Bushings (13)
Cast Bronze Bushings (12)
Composite Bushings (16)
Bimetal Bearings (20)
I'm Online Chat Now

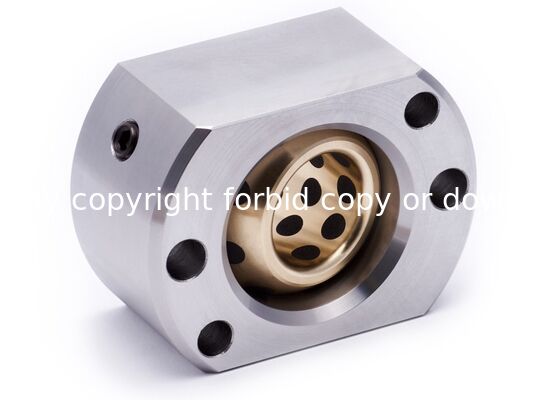

Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR(Right Handed)

Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR(Right Handed)
Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR(Right Handed)

Large Image :  Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR(Right Handed) Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: INWAY
Certification: ISO9001
Model Number: INW-MTG
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 5 work days or based on quantity
Payment Terms: L/C, T/T
Supply Ability: 100 tons/month
Contact Now
Detailed Product Description
Application: Injection Mold Size: Standard
Standard: Sankyo Type: Adjusting Type
Material: Steel With Hardness Shaping Mode: Die Casting
Highlight:

Spherical Guide Bushing Set

,

Inclined Pin Guide Bushing Set

,

Right Handed Guide Bushing Set

Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR (Right Handed)
Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR (Right Handed)

Sankyo Standard Oil-Free Slide Units For Loose Core - Standard/Fixed Type
Material Specifications
  • Inner wheel: Copper Alloy Oilless Type
  • Outer wheel: S45C-H (C45 A 1045)
  • Operating temperature range: 0°C to 170°C
Features of Oil-free Slide Units for Loose Core
  • Refer to the dimensional table for inclined pin edge cutout and screw size (PM) specifications
  • Counterbore on inclined pin holder accommodates socket head cap screw with spring washer
  • Two mounting options: screwing into ejector plate or screwing into unit
  • For unit mounting, use socket head cap screw corresponding to BM dimensions
  • For plate mounting, select one rank below corresponding BM (e.g., M6 screw when BM is M8)
  • Apply grease before mounting to protect against wear during initial running-in
  • For long strokes, recommended to use bushing that supports the inclined pin
Technical Specifications
LWTHHaBMounting HolesDowel Pin HoleCatalog No.d MaPheXY
44281798143220288
46302011916M53465222810
503222121018362230MTGL12
584529161325M6456303516
6550331815285273540MTGR20
78573821173362405025
866543241937M87098485530
Spherical Guide Bushing Set For Inclined Pin Standard Type MTGL (Left Handed) MTGR(Right Handed) 0
