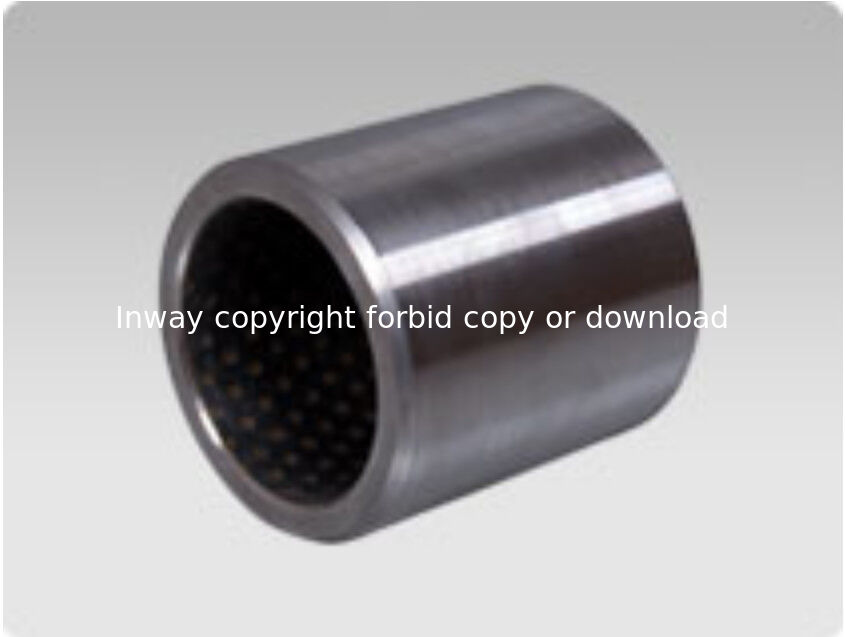

Water Conservancy Project Bearings , INW-TSG-150 Steel Backed Bronze Plastics Bearings

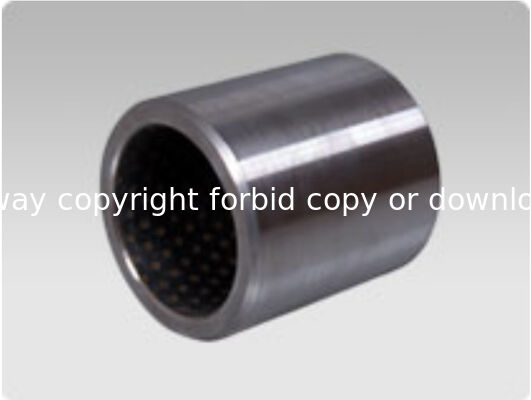

Large Image : Water Conservancy Project Bearings , INW-TSG-150 Steel Backed Bronze Plastics Bearings Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	INW-301

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Application:	Automobile Application	Size:	Standard
Standard:	JIS	Type:	Straight
Material:	Gr15	Lubricant:	Graphite
Highlight:	hardened bearing sleeves , hardened steel sleeve bearing

Water Conservancy Project Bearings - INW-TSG-150 Steel Backed Bronze Plastics Bearings

INW-TSG-150 bearings are specifically engineered for water conservancy projects. These hardened steel bushings are manufactured from high-quality low-carbon steel or stainless steel using specialized techniques. The surface undergoes carburizing treatment to enhance hardness, making them ideal for demanding applications in the automobile industry and heavy-duty machinery.

TSG-150 Steel Backed Bronze Plastics Bearings Specifications

Parameter	TSG-150	TS-2
Shell thickness (mm)	1-1.5	0.5-0.8
Allow wearing depth (mm)	0.5	0.3
Maximum carrying capacity (N/mm²)	100	40
Coefficient of friction - Aging	0.15	0.14
Coefficient of friction - Static (water)	0.12	0.12
Coefficient of friction - Dynamic (min)	0.08	0.07
Appearance	To allow a small amount of plastic pore

Headed Press Fit Bush is utilized when the production volume doesn't require bushing replacement during the jig's lifespan. Press Fit Bushings can be supplied with grinding stock for fitting in the customer's plant or finish ground to precise Press Fit specifications.

Our Manufacturing Advantages

Utilization of 100% raw materials with strict incoming inspection protocols
Overpressure sintering process increases alloy teeth densification and extends lifespan by 30%
Customization available according to specific customer requirements

Production Process

Milling → Proportioning as required → Wet grinding → Drying → Granulation → Pressing → Sintering → Inspection → Packaging

TSG-150 Size Specifications

φd(r8)	φd(E9)	Seat Bore(f7)	Diameter of axle(f7)	L0-0.5
100+0.105 +0.051	80+0.134 +0.060	100+0.035 +0	80-0.030 -0.060	60≤L≤120
120+0.108 +0.054	100+0.159 +0.072	120+0.035 +0	100-0.036 -0.071	100≤L≤150
140+0.126 +0.063	120+0.159 +0.072	140+0.04 +0	120-0.036 -0.071	100≤L≤150
180+0.131 +0.068	150+0.185 +0.085	180+0.04 +0	150-0.043 -0.083	100≤L≤200
220+0.152 +0.080	190+0.215 +0.100	220+0.046 +0	190-0.050 -0.096	150≤L≤250
300+0.179 +0.098	260+0.240 +0.110	300+0.052 +00	260-0.056 -0.108	150≤L≤300
360+0.203 +0.114	320+0.265 +0.125	360+0.057 +0	320-0.062 -0.119	200≤L≤350
