Bimetal Bearing Bushes INW-3S , Bimetal Bushing With Compounded PTFE Tape

All Products

Self Lubricating Bearings (31)

Solid Lubricant Bearings (18)

Sintered Metal Bearings (15)

Stamping Die Components (11)

Injection Mold Components (16)

Self Lube Wear Plates (12)

Hardened Steel Bushings (13)

Cast Bronze Bushings (12)

Composite Bushings (16)

Bimetal Bearings (20)

I'm Online Chat Now

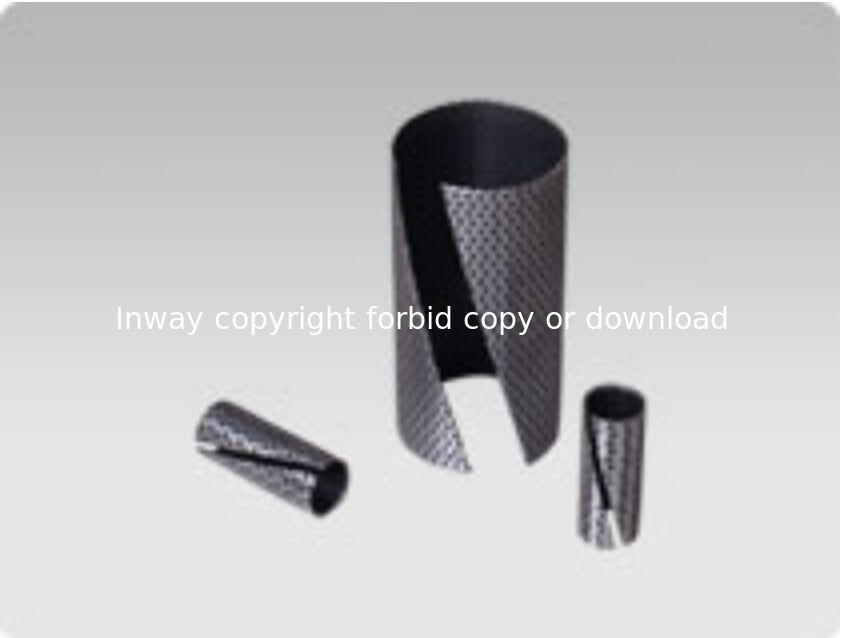

Bimetal Bearing Bushes INW-3S , Bimetal Bushing With Compounded PTFE Tape

Large Image : Bimetal Bearing Bushes INW-3S , Bimetal Bushing With Compounded PTFE Tape Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	INW-80

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Application:	Engine Bearing	Size:	Standard
Standard:	DIN1494	Material:	Steel+CuSn6Ni9
Type:	X Type	Technical:	Wrapped Bronze
Highlight:	bimetal bushing , bimetal bearing bushes

Bimetal Bearing Bushes INW-3S with Compounded PTFE Tape

Bimetal Bearing Bushes INW-3S feature a stainless steel mesh shell laminated with compounded PTFE tape, providing lightweight construction with excellent corrosion resistance for chemical, medical, and food industry applications.

INW-3S Material Features

TYB3S consists of a stainless steel mesh shell laminated with compounded PTFE tape, creating lightweight final products with superior corrosion resistance.

Technical Specifications

Parameter	Type	Value
Max. Load	Static	80 N/mm²
Max. Load	Dynamic	40 N/mm²
Max. Speed	Dry	1 m/s
Max. Speed	Oil	> 1 m/s
Temperature Limit	-	-190℃ to +260℃
Friction Coefficient	-	0.03 - 0.20

Sliding layer can be machined with lubricating grooves and/or grease indents
Very good corrosion resistance
Material composition: Steel + CuSn6Ni9

INW-200 Steel Backed Bronze Alloy Bearing

INW-200 features steel-backed bronze alloy lined bearing material with optional oil groove machining to enhance lubrication systems. This design offers lower friction, excellent wear resistance, and higher temperature tolerance compared to traditional steel bushes, making it ideal for high-speed mold and die industries.

TY Standard Technical Parameters

TY Standard	Steel	CU	Max. Load Static	Max. Load Dynamic	Max. Speed	Max. PV	Friction Coefficient	Temperature
TY450	≥45 HRC	≥80 HB	50 N/mm²	30 N/mm²	2 m/s	1.8 N/mm²*m/s	0.03 - 0.20	-50℃ to +250℃

Detailed Technical Specifications

Max. Load Static:

250 N/mm²

Max. Load Dynamic:

100 N/mm²

Max. Speed Dry:

0.5 m/s

Max. Speed Oil:

1.0 m/s

Max. PV:

3.25 N/mm² * m/s

Hardness:

HB > 210

Temperature Range:

-100℃ to +300℃

Friction Coefficient:

0.03 - 0.20

Thermal Conductivity:

60 W/(m·K)

Coefficient of Thermal Expansion:

19 × 10⁻⁶ K⁻¹

Yield Point:

150 N/mm²

INW-200 Bimetal Bearing Dimensions

Complete dimensional specifications for INW-200 bimetal bearings including inner diameter (d), outer diameter (D), wall thickness, oil hole specifications, and various length options.

d	D	Axle h8	Housing bore	Installed bearing d	Wall thickness	Oil hole	f1	f2	L 0-0.40
10	12	10-0.022	12+0.018	+0.148 +0.010	0.995	0.935	4	0.5	0.3
12	14	12-0.027	14+0.018	-	-	-	-	-	-
14	16	14-0.027	16+0.018	-	-	-	-	-	-
15	17	15-0.027	17+0.018	-	-	-	-	-	-
16	18	16-0.027	18+0.018	0.8	0.4	-	-	-	-
18	20	18-0.027	20+0.021	+0.151 +0.010	-	-	-	-	-
20	23	20-0.033	23+0.021	+0.181 +0.020	1.490	1.430	6	-	-
22	25	22-0.033	25+0.021	-	-	-	-	-	-
24	27	24-0.033	27+0.021	1.0	0.5	-	-	-	-
25	28	25-0.033	28+0.021	-	-	-	-	-	-
26	30	26-0.033	30+0.021	+0.205 +0.030	1.980	1.920	-	-	-
28	32	28-0.033	32+0.025	-	-	-	-	-	-
30	34	30-0.033	34+0.025	1.2	0.6	-	-	-	-
32	36	32-0.039	36+0.025	-	-	-	-	-	-
35	39	35-0.039	39+0.025	-	-	-	-	-	-
38	42	38-0.039	42+0.025	8	-	-	-	-	-
40	44	40-0.039	44+0.025	-	-	-	-	-	-
