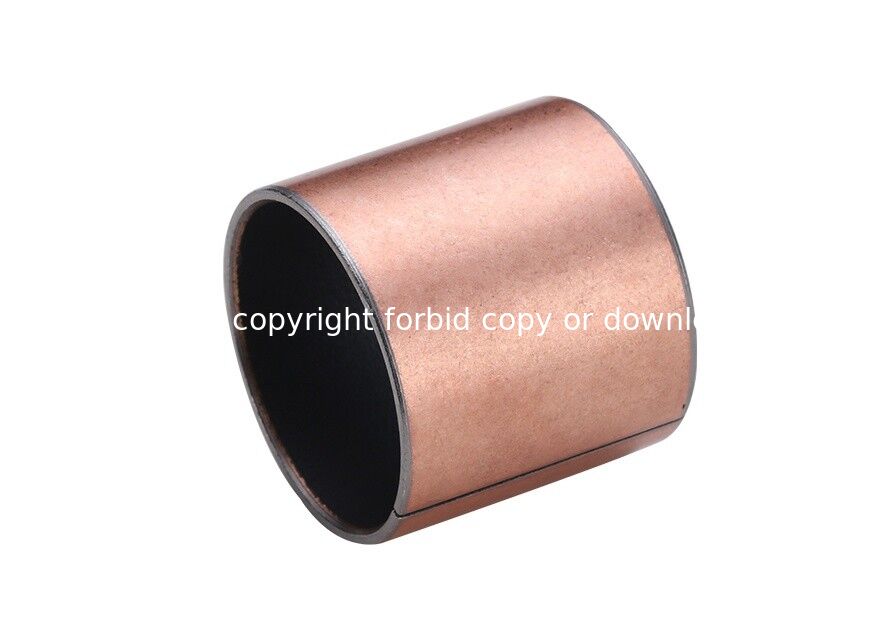

INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE

INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE
INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE

Large Image :  INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: INWAY
Certification: ISO9001
Model Number: INW-10W
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 5 work days or based on quantity
Payment Terms: L/C, T/T
Supply Ability: 100 tons/month
Contact Now
Detailed Product Description
Application: Engine Bearing Size: Standard
Standard: DIN 1494 Material: Steel+Bronze +PTFE
Type: With Split Technical: Dry Bushing
Highlight:

composite bearing

,

compound bearings

INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE
INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE
Structure and Composition
  • Metal-Polymer Composite Self-lubricating Bushing Material
  • Steel Back + Porous Bronze Sinter + PTFE + Lead
Microsection
  • Sliding layer: PTFE + Lead
  • Porous Bronze Sinter
  • Steel Backing
Operating Performance
Lubrication Type Performance Rating
Dry Very Good
Oil lubricated Good
Grease lubricated Fair
Water lubricated Fair
Process fluid lubricated Fair
Superior / Lead-Free Performance Options
Lubrication Type Alternative Material
Dry DP4 / DP11
Oil lubricated DP4 / DP31
Grease lubricated DP4 / DX
Water lubricated DP4-B
Process fluid lubricated DP4 / DP31
Bearing Properties
General Properties
Property Type Unit Value
Maximum load, p Static N/mm² 250
Dynamic N/mm² 140
Operating temperature Min °C -200
Max °C 280
Coefficient of linear thermal expansion Parallel to the surface 10⁻⁶/K 11
Normal to the surface 10⁻⁶/K 30
Dry Operation
Property Unit Value
Maximum sliding speed, U m/s 2.5
Maximum pU factor N/mm² × m/s 1.8
Coefficient of friction - 0.02 - 0.25 *
Oil Lubricated Operation
Property Unit Value
Maximum sliding speed, U m/s 5.0
Maximum pU factor N/mm² × m/s 5.0
Coefficient of friction - 0.02 - 0.12
Recommendations
Property Condition Unit Value
Shaft surface roughness, Ra Dry µm 0.3 - 0.5
Lubricated µm ≤ 0.05 - 0.4 *
Shaft surface hardness Unhardened acceptable, improved bearing life > 200HB
* Values may vary depending on operating conditions
INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE 0
