Self Lubricating Bearings INW-10F SF-1F DUF Bushing Steel Bronze Powder Fibre
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | ISO 3547 | Material: | Steel+Bronze +PTFE |
| Type: | Flange Type | Technical: | Dry Bushing |
| Highlight: | composite bearing,compound bearings |
||

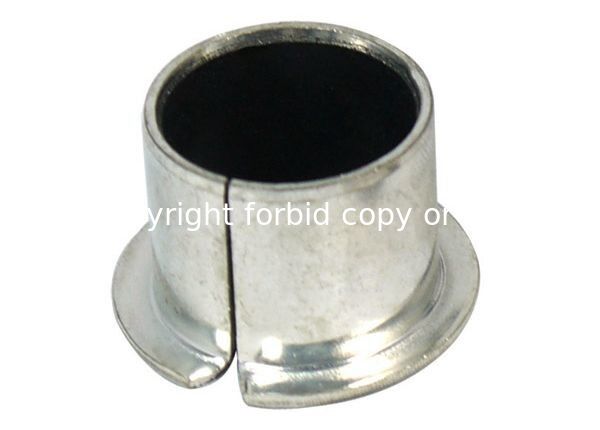

Self Lubricating Bearings INW-10F SF-1F DUF Bushing Steel Bronze Powder Fibre
Self-lubricating bearings INW-10F SF-1F DUF bushings manufactured from steel bronze powder PTFE/fibre composite deliver exceptional performance with or without supplemental lubrication.
Key Features
- Operates effectively with or without supplemental lubrication
- Low friction coefficient and minimal wear rate
- Excellent sliding characteristics with very low absorption
- Supports rotary, linear, and oscillating motion applications
- Creates solid lubricant film that coats the shaft surface
Multi-Layer Structure
1. PTFE/Fibre Contact Layer (0.01-0.03mm)
Primary contact surface for rotating shafts. PTFE particles combine with sintered bronze to create a durable solid lubricant film that coats the shaft.
2. Sintered Bronze Powder Layer (0.20-0.35mm)
Thermally fused powdered copper anchors the PTFE layer and efficiently conducts thermal buildup away from bearing surfaces.
3. Low-Carbon Steel Backing
Provides exceptional structural stability, high load carrying capacity, and superior heat dissipation characteristics.
Industrial Applications
Automotive & Construction
Tractors, combines, crop sprayers, earth-movers, graders, power steering cylinders, steering gear thrust washers, disc brakes, calipers, pistons, shock absorbers, governor linkage, windshield wiper motors, and tilt gear assemblies.
Business Machinery
Photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers, peripheral equipment, automatic printing devices, and mail processing machinery.
Hydraulic Systems & Home Appliances
Gear pumps, rotary pumps, water pumps, axial piston pumps, ball valves, butterfly valves, poppet steam valves, valve trunnions, tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, and clothes washing machines.
Also suitable for materials handling, marine engines, packaging equipment, textile machinery, and industrial tools.
Technical Specifications
| Load Capacity | 140 N/mm² |
| Friction Coefficient | 0.03 - 0.18 |
| Temperature Range | -195℃ to 280℃ |
| PV Limit (Dry) | 4.3 N/mm²·m/s |
| Speed Limit | 10 m/s |
| PV Limit (Oil) | 60 N/mm²·m/s |
