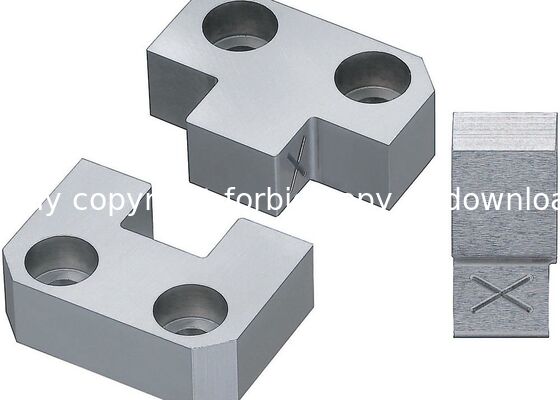

Side Straight Block Sets - Side Installation Type with Oil Groove
Precision side straight block sets designed for side installation applications with integrated oil groove functionality.
Key Features
- Ideal for precision molds in connector and electronic device manufacturing
- Prevents wear and damage to core pins by enabling positioning before core pin installation
- Simplified positioning through simultaneous plate processing in stacks
- Requires precision leader pins due to minimal clearance specifications
Technical Specifications
| Component | Positioning Precision (Clearance) | V Dimension Symmetry Against A/B Plane |
|---|---|---|
| Pin | 0 to -0.005 | 0.005 |
| Bushing | +0.01 to +0.005 | 0.015 |
| Tolerance | - | 0.003 or less |
