Injection Molded Parts punch Single Heel Guide Rails GR5SV GR5MV GR8SV GR8MV
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Injection Mold | Size: | GR5SV |
|---|---|---|---|
| Standard: | Punch | Type: | Fix Type |
| Material: | Steel | Shaping Mode: | Two Slide Plate |
| Highlight: | injection molding tool,self lubricating metal |
||

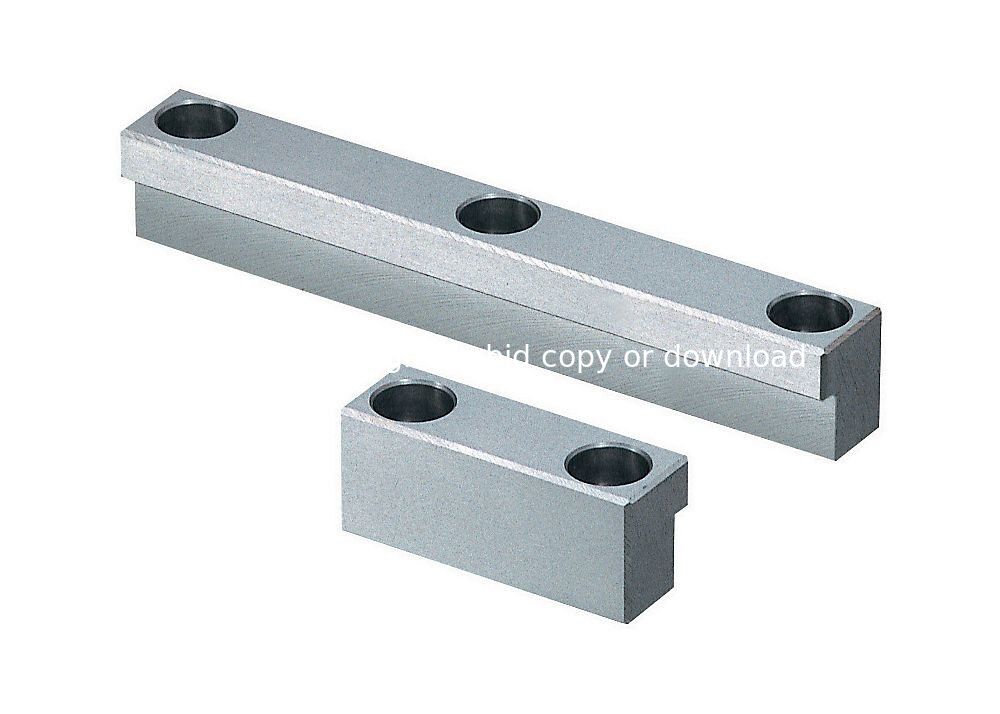

Injection Molded Parts Punch Single Heel Guide Rails GR5SV GR5MV GR8SV GR8MV
Precision injection molded punch guide rails designed for standard V-dimension applications with heel heights of 5mm and 8mm types.
Product Features
Single-heel guide rail design for precise punch guidance
Available in 5mm and 8mm heel height configurations
Standard V-dimension compatibility
Multiple length and bolt hole configurations
Note: The S dimension tolerance differs from heel height 10mm, 12mm, and 15mm types.
Technical Specifications
| Part Number | T Selection | L | No. of Bolt Holes | A | B | C |
|---|---|---|---|---|---|---|
| GR5SV GR5MV | 12.5 | 12.5 | 2 | 7.5 | - | - |
| 15 | ||||||
| 20 | ||||||
| 40 | ||||||
| 15 | 50 | 3 | 30 | 50 | 15 | |
| 60 | ||||||
| 70 | ||||||
| 80 |
| Part Number | T Selection | L | No. of Bolt Holes | A | B | C |
|---|---|---|---|---|---|---|
| GR8SV GR8MV | 15 | 15 | 2 | 7.5 | - | - |
| 20 | ||||||
| 25 | ||||||
| 40 | ||||||
| 50 | ||||||
| 60 | ||||||
| 20 | 70 | 3 | 10 | - | - | |
| 80 | ||||||
| 90 | ||||||
| 100 | ||||||
| 110 | ||||||
| 120 |
