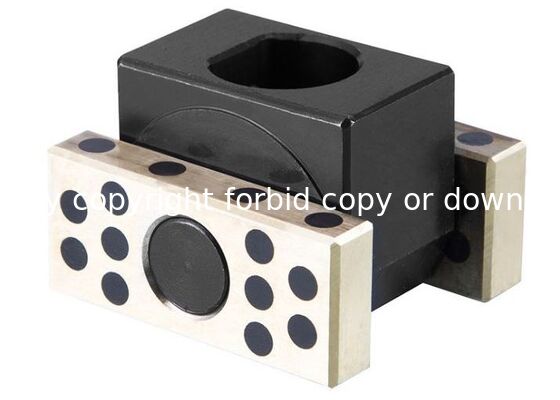

SCZAP Injection Mold Components Oil Free Slide Inclined Pin Holders Adjusting Type
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Injection Mold | Size: | Standard |
|---|---|---|---|
| Standard: | Punch | Type: | Adjusting Type |
| Material: | Bronze With Graphite | Shaping Mode: | Two Slide Plate |
| Highlight: | injection molding tool,self lubricating metal |
||
SCZAP Injection Mold Components Oil Free Slide Inclined Pin Holders Adjusting Type
Punch Standard Oil-Free Slide Units For Loose Core - Standard/Fixed Type
Features of Oil-free Slide Units for Loose Core
Key Characteristics
- Guide parts of SCZN and SCZA series - refer to SCZN and SCZA series for slide base requirements
- Reduced space requirement by processing slide base on mold's body
- Neck sliding structure of inclined pin holder enables automatic center adjustment function
- Reduces abrasion and scoring on guide and slide plates
Component Specifications
| Item | Components | Parts Name | Material | Quantity |
|---|---|---|---|---|
| ① | Inclined pin holder | Inclined Pin Holder | SCM440 | 1 |
| ② | Slide plate | Slide Plate | CAC304 + Solid lubricant | 2 |
| ③ | Key | Key | S45C | 1 |
| ④ | Adjust rod | Adjust Rod | S45C | 1 |
| ⑤ | Lock nut | Lock Nut | S45C | 1 |
* Grade-4 high strength brass (Old JIS: HBsC4)
Adjusting Type Specifications
| Type | D | D1 | d | h | h1 | h2 | h3 | N | N1 | S | a | T | S1 | e1 | S2 | e2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCZAP | 11 | 5.5 | 16 | 6 | 33 | 10 | 30 | 17 | 20 | 35 | 6.5 | 17 | 19.6 | 12 | 13.9 | |
| 16 | 15 | 9 | 18 | 6 | 33 | 11 | 33 | 20 | 20 | 40 | 6.5 | 21 | 24.2 | 16 | 18.5 | |
| 20 | 18 | 11 | 22 | 6 | 36 | 13 | 38 | 25 | 24 | 40 | 6.5 | 24 | 27.7 | 19 | 21.9 | |
| 25 | 22 | 11 | 26 | 6 | 39 | 15 | 45 | 31 | 26 | 45 | 7 | 24 | 27.7 | 19 | 21.9 | |
| 30 | 27.5 | 11 | 30 | 6 | 41 | 17 | 51 | 36 | 30 | 55 | 7.5 | 24 | 27.7 | 19 | 21.9 |
SCZAP is sold as a set of four components from SCZA series: angular pin holder, slide plate, adjust rod, and lock nut.
